LED Module light

SM13 adjustment power CCT LED ceiling light module

Short Description:

In an era that pursues efficient and personalized lighting, are you longing for a perfect light source that adapts to your needs and is ready to use upon installation? The new SM13 Series LED Ceiling Light Module emerges as the ideal solution. We integrate innovative technology and user-centric design to bring you an unprecedented installation experience and lighting control, making professional lighting remarkably simple.

Send email to us

Product Detail

Product Tags

Product Specifications

Model	Dimension(mm)	Power	LED Chip	CCT	Luninous flux
SM13-180-24-CCT	Φ180	Dip switch (12 18 24W)	SMD 2835	Dip switch (3000K/3500K/4000K/5000K/6000K)	1400/2160/2880lm
SM13-215-24-CCT	Φ215	Dip switch (12 18 24W)	SMD 2835		1400/2160/2880lm
SM13-285-36-CCT	Φ285	Dip switch (24 30 36W)	SMD 2835		2880/3600/4320lm

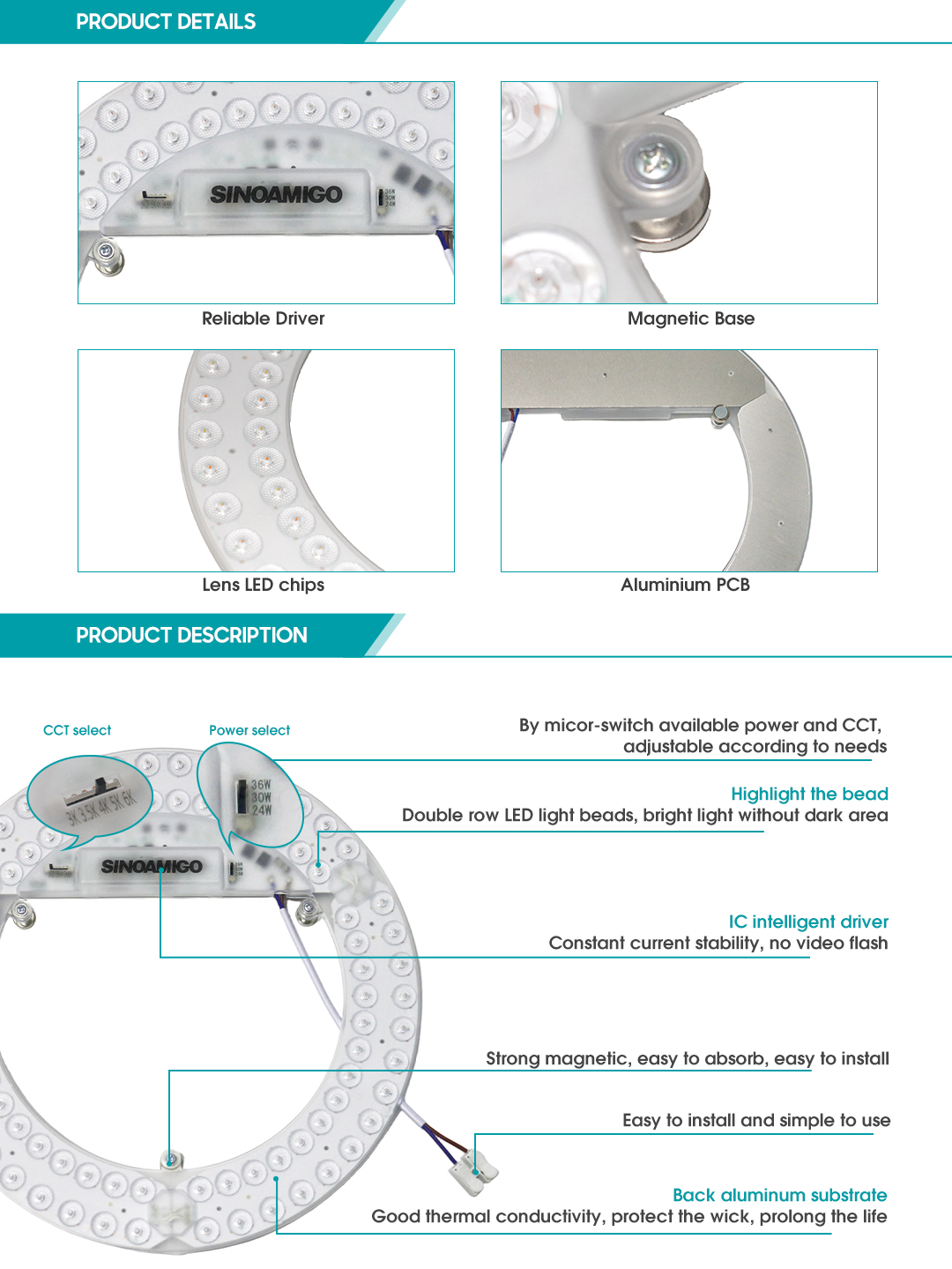

product features

The SM13 Series LED Ceiling Light Module utilizes high-quality lens-based LED beads, delivering soft and uniform light that effectively reduces glare and creates a comfortable, healthy lighting environment to protect eyesight. The dual-row layout ensures broader light coverage and more consistent light distribution, eliminating dark areas and meeting the basic lighting needs of various spaces.

The SM13 LED Module features a DIP switch for color temperature adjustment, requiring no fixture replacement or complicated settings. With a simple DIP switch, you can freely toggle between multiple color temperatures—3000K, 3500K, 4000K, 5000K, and 6000K—easily adapting to different scenes and atmospheres. The module's power can be flexibly adjusted according to actual lighting needs, striking the perfect balance between energy efficiency and high-brightness requirements, thereby maximizing energy performance.

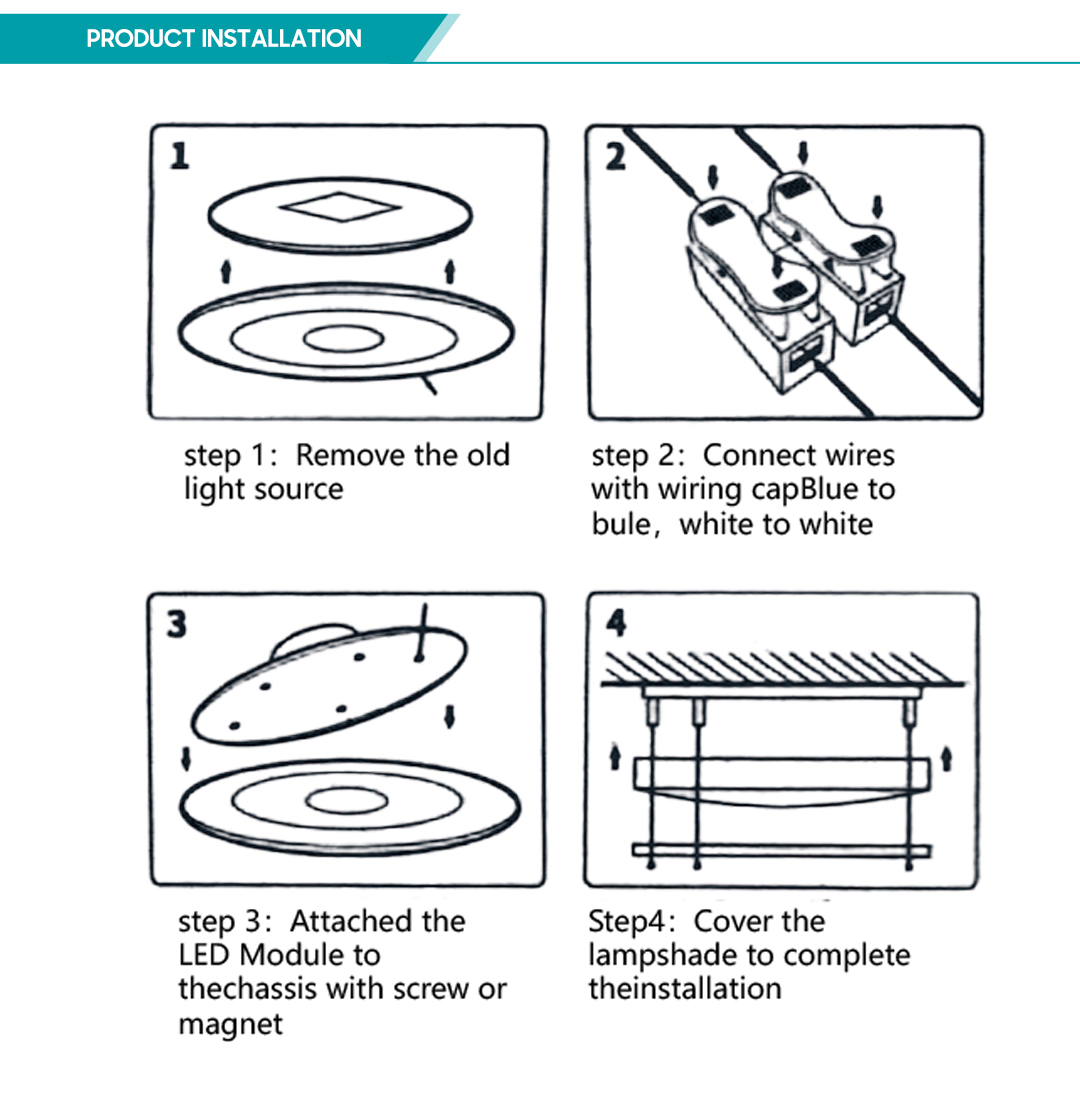

The SM13 LED Module eliminates the hassle of traditional screw mounting. With built-in powerful magnets, it securely attaches to any ferrous metal surface with an "instant attachment," significantly saving installation time and labor costs.

The SM13 Series LED Ceiling Light Module is more than just a light source; it is an intelligent, flexible, and efficient lighting solution. It ensures superior light quality through its lens-based LED beads and dual-row design, grants you the freedom to control light via DIP switch adjustment, and simplifies the installation process with powerful magnetic attachment. Choosing the SM13 LED Module means choosing efficiency, flexibility, and the future.
