Product Specifications
| Model | Dimension(mm) | Power | LED Chip | Number of LED | Luninous flux |
| SM041280-F | φ158×25 | 12W | 2835 | 18 | 1200lm |
| SM041880-F | φ193×25 | 18W | 2835 | 24 | 1800lm |
| SM042480-F | φ230×25 | 24W | 2835 | 36 | 2400lm |
Product Datasheet

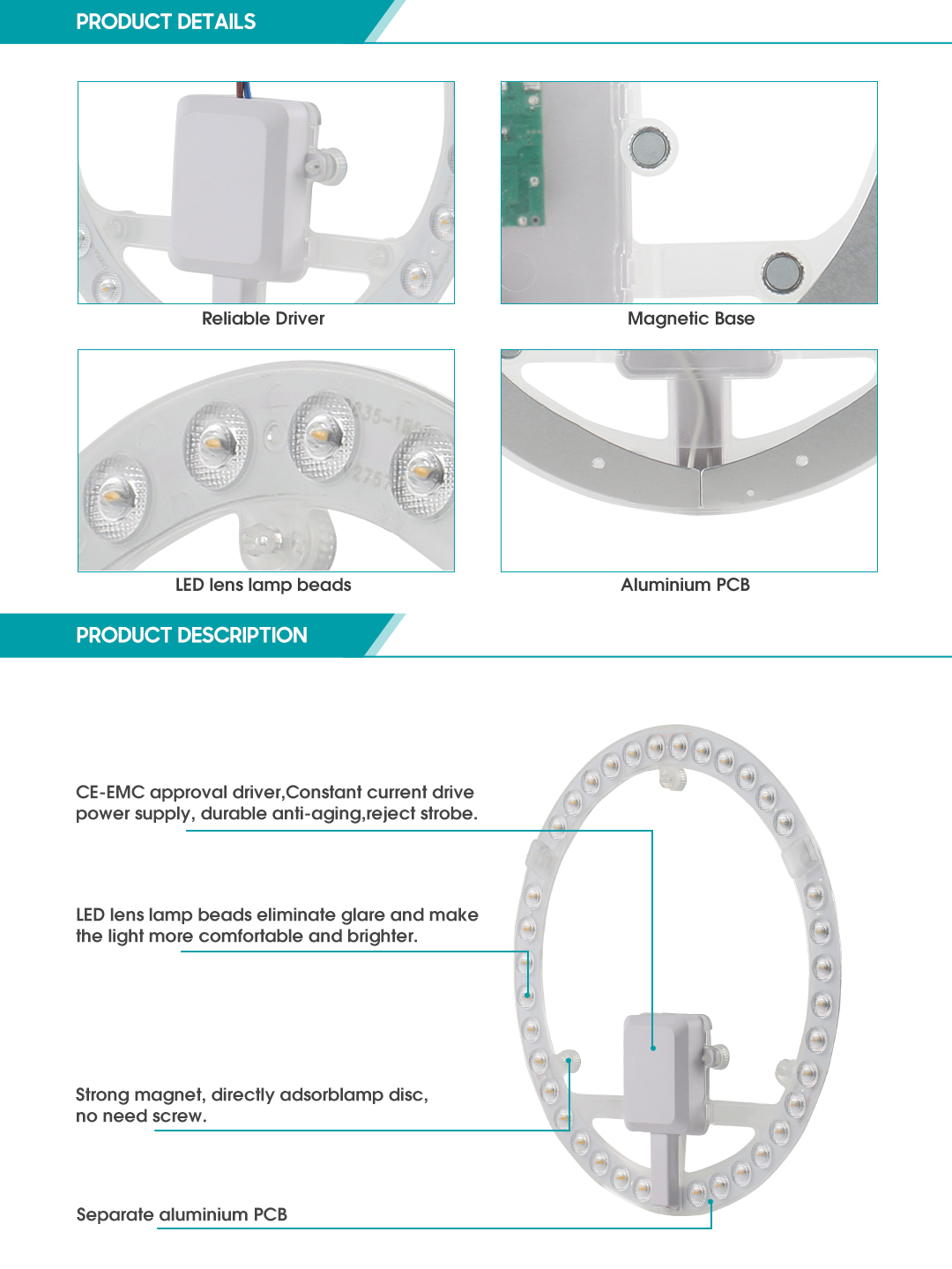

product features
- The new generation of LED ceiling light module adds the appearance of robots, adding color to your life.
- This light is added with lens, more uniform light emission, higher brightness, high color rendering index, more realistic colors. Through the principle of optical lens, the light is refracted and magnified, the light is softer, the glare is eliminated, and the light is more comfortable and bright.
- Easy to install, this lamp comes with a strong magnet for adsorption, no need to punch holes, it can be used directly by attaching to the lamp panel, and the installation is more convenient and faster.
- High quality and high thermal conductivity integrated aluminum substrate, faster heat dissipation, longer life of LED lamp beads, and more durable lamps
- Strictly select high-quality high-brightness LED chips, low light decay, large luminous flux, bright and comfortable light, creating a healthy light environment.
- Built-in flow driver, no flicker, stable and durable light, more energy-saving than traditional lamps.

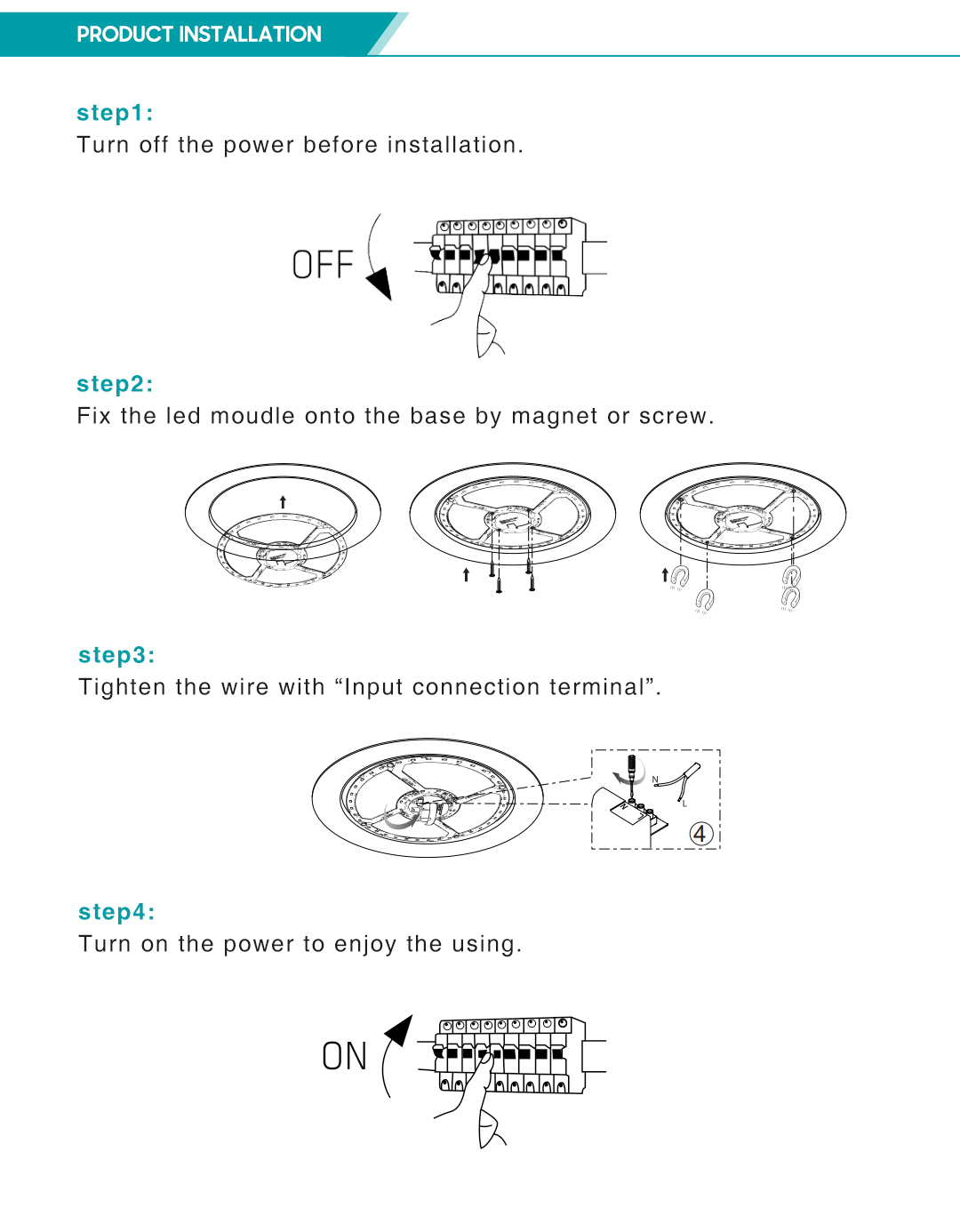

INSTALLATION GUIDE
1. Turn off the power before installation.
2. Remove the lampshade, then remove all the old light sources, electrical components and screw buckles, and remove the original ballast and driver.
3. Use magnets or screws to fix the LED module on the base.
4. Tighten the wiring with the "input terminal" to check whether the installation is secure.
5. Finally, install the lampshade and turn on the power.

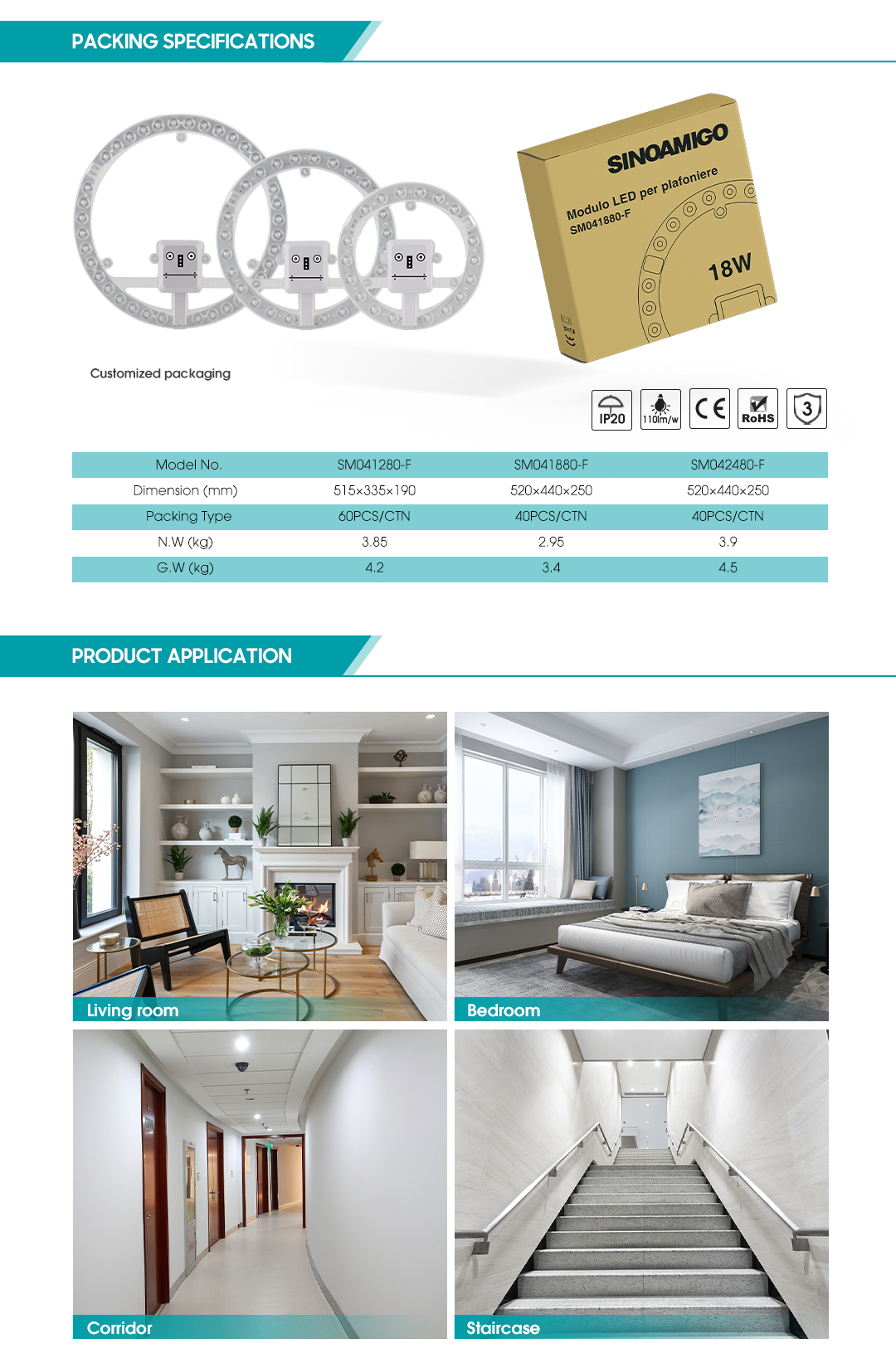

Application Scenarios
Suitable for most ceiling lamps.
Product Description
