Product Specifications
|
Model |
Dimension(mm) |
Power |
LED Chip |
Number of LED |
Luninous flux |
|
SM111280 |
Φ160×25 |
12W |
2835 |
24 |
1200lm |
|
SM111880 |
Φ210×25 |
18W |
2835 |
36 |
1800lm |
|
SM112480 |
Φ260×25 |
24W |
2835 |
48 |
2400lm |

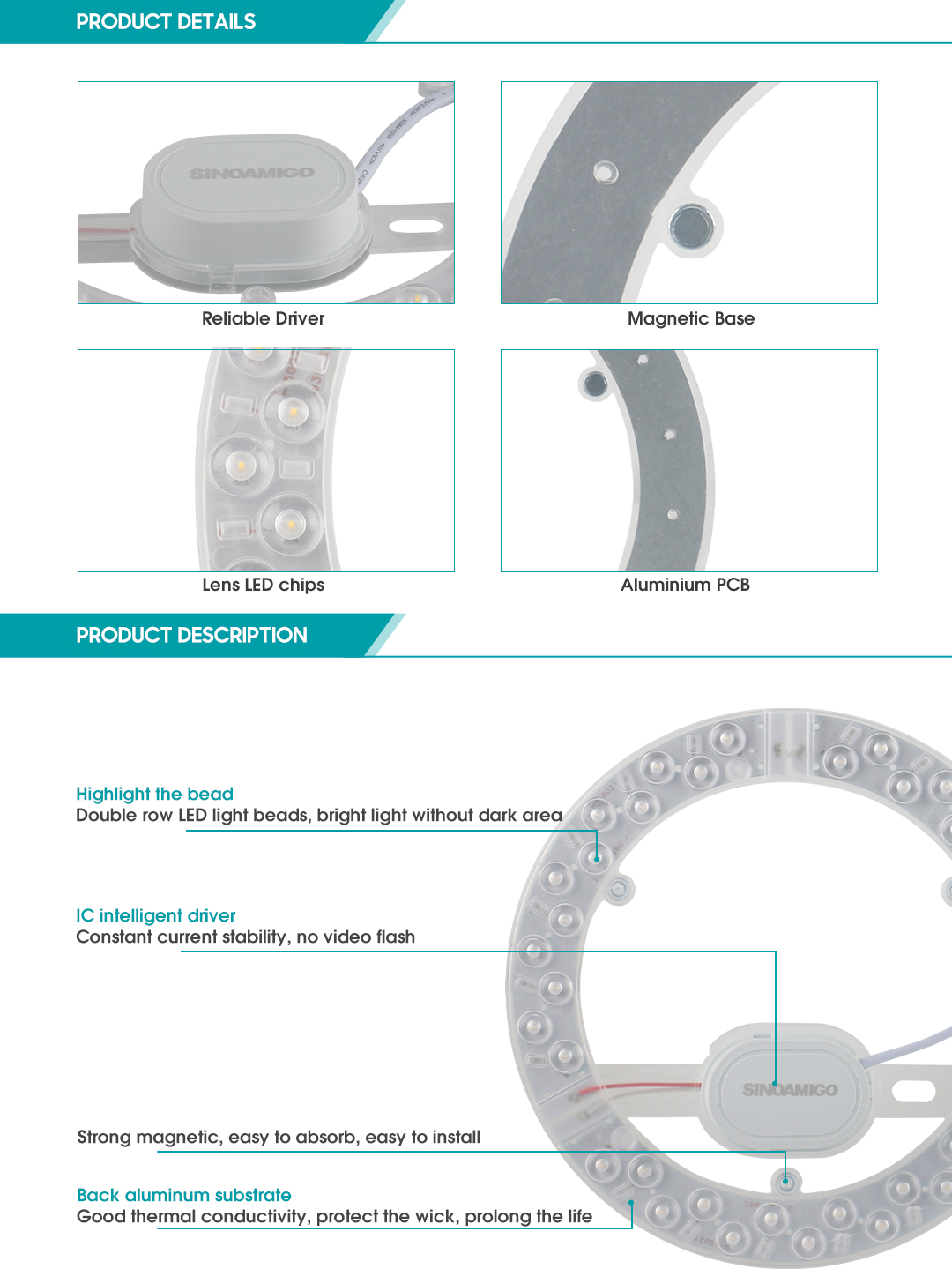

product features
- Select high-quality lamp beads, use professional optical lenses, 360° wide-angle light distribution, more uniform light output, and wider light-emitting surface. Uniform light, long-lasting brightness, double-row lamp bead design, higher brightness.
- Built-in magnet, strong magnet adsorption, can be installed without screws, easy to install and replace.
- Insulated bottom plate, no sealing, high heat dissipation, durable and safe, longer service life.
- Constant current drive, equipped with safety circuit, prevent electric leakage, electric shock and other electrical hazards, anti-wear and aging resistance, reject video flicker, and protect eyesight health
- Strictly select high-quality high-brightness LED chips, with small light decay, large luminous flux, bright and comfortable light, and create a healthy light environment.
- Color rendering index CRI ≥ 80, high color rendering, restore the true color of the item.
INSTALLATION GUIDE
1. Turn off the power supply before installation.
2. Remove the lampshade, then remove all the old light sources, electrical components and turnbuckles, and remove the original ballast and driver.
3. Use magnets or screws to fix the LED module on the base.
4. Tighten the wiring with the "input terminal" and check whether the installation is secure.
5. Install the lampshade at last and turn on the power.
Application Scenarios
Compatible with most ceiling lights.
