Product Specifications
|
Model |
Dimension(mm) |
Power |
LED Chip |
Number of LED |
Luninous flux |
|
SM041280-X |
φ130×25 |
12W |
2835 |
15 |
1200lm |
|
SM041880-X |
φ165×25 |
18W |
2835 |
21 |
1800lm |
|
SM042480-X |
φ215×25 |
24W |
2835 |
27 |
2400lm |
product features

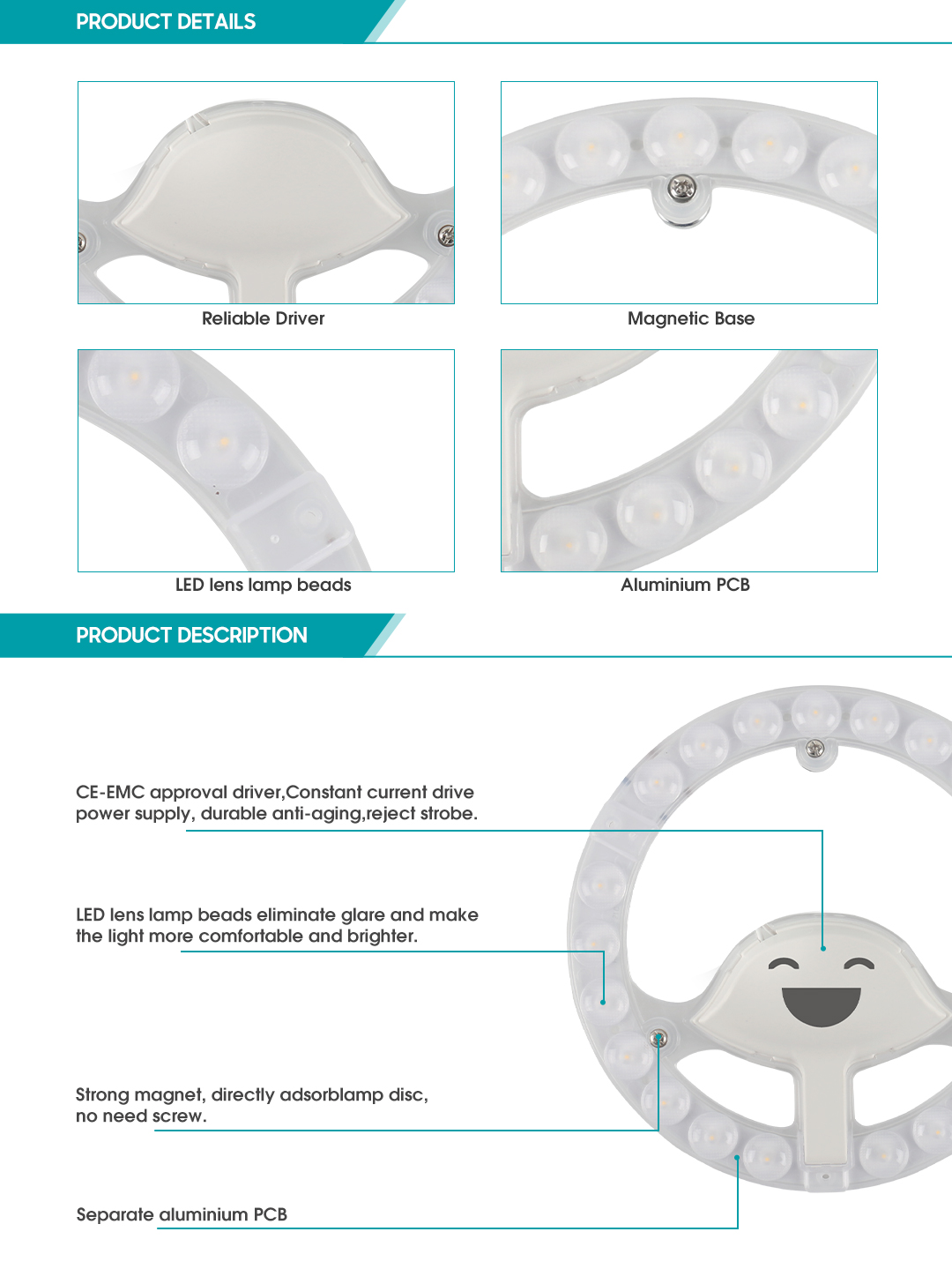

* The appearance of this newly upgraded LED ceiling light module adopts a smiley expression, which means that you can brighten your life with a smile.
* The optical lens is matched with the acrylic optical lampshade to bring the performance of the LED to a new height. The 360-degree wide-angle lens distributes the light. It ensures uniform light effect through the principle of refraction, and at the same time prevents glare and glare, so that the light color is clearer and softer .
*Easy to install, this light comes with a strong magnet for adsorption, it can be used by directly absorbing the lamp panel, and it can be installed without additional screws .
*High-quality high-thermal conductivity aluminum substrate, one-piece molding, with PC lens, integrated, the overall appearance is warm and solid .
* Built-in flow driver, no flicker, stable and durable light, more energy-saving than traditional lamps .

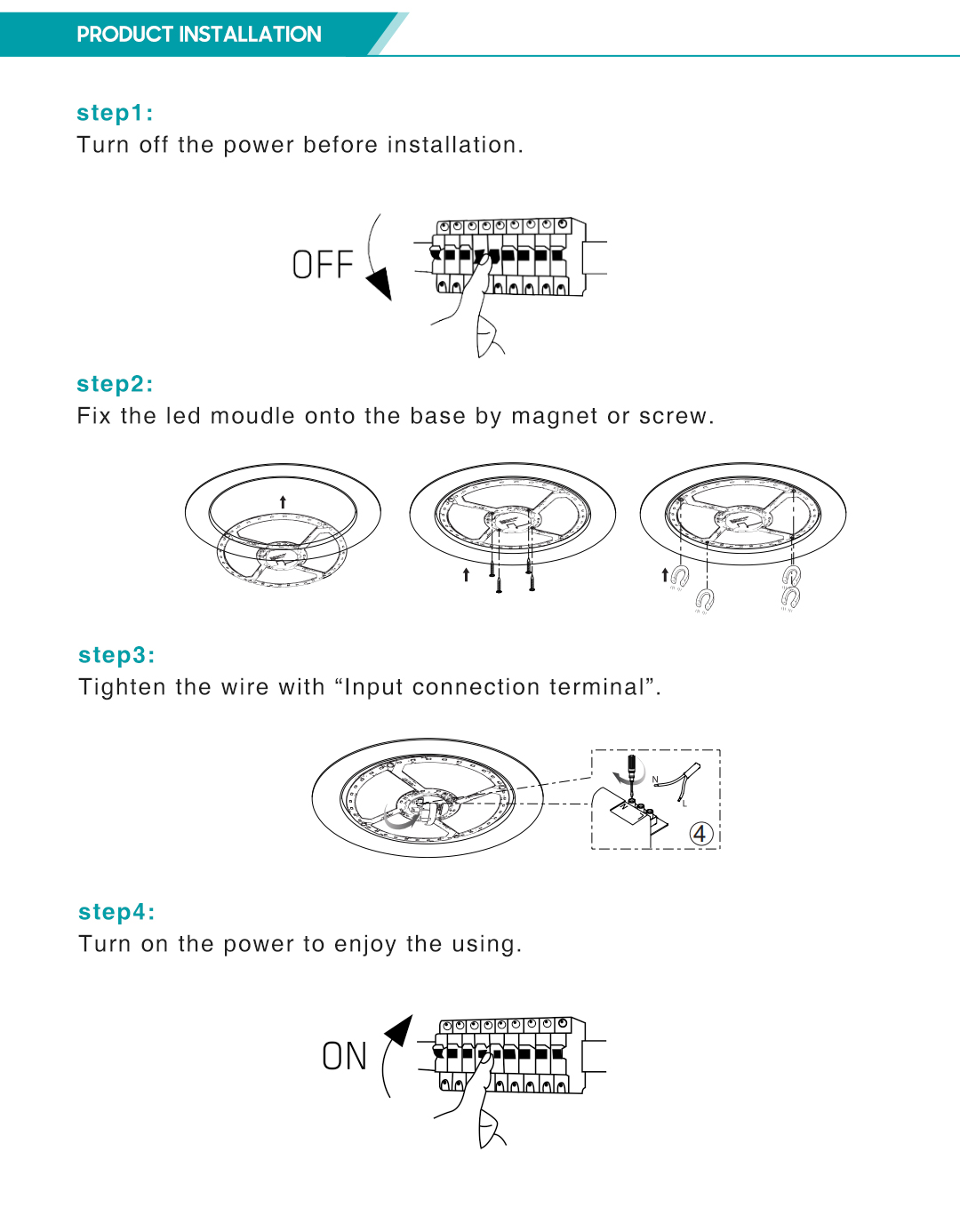

INSTALLATION GUIDE
1. Turn off the power supply before installation.
2. Remove the lampshade, then remove all old light sources, electrical components and screw buckles.
3. Must remove the original ballast and driver
4. Use magnets or screws to fix the LED module on the base.
5. Tighten the wiring with the "input terminal" to check whether the installation is firm.
6. Finally, install the lampshade and turn on the power supply.

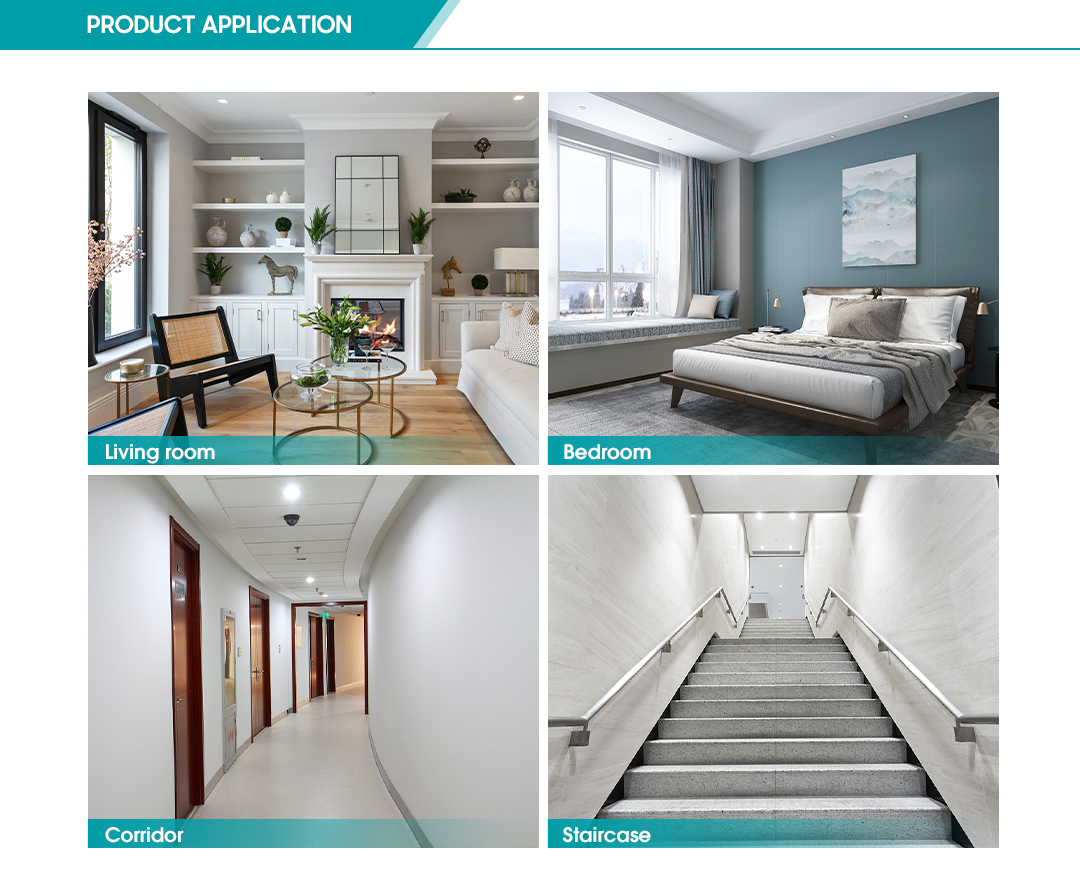

Application Scenarios
Suitable for most ceiling lamps.
