Product Specifications
|
Model |
Dimension(mm) |
Power |
LED Chip |
Number of LED |
Luninous flux |
|
SM011280 |
φ166×22 |
12W |
5730 |
24 |
1320lm |
|
SM011680 |
φ220×22 |
16W |
5730 |
32 |
1760lm |
|
SM012480 |
φ288×22 |
24W |
5730 |
48 |
2640lm |
|
SM011280-GY |
φ166×22 |
12W |
5730 |
24 |
1320lm |
|
SM011680-GY |
φ220×22 |
16W |
5730 |
32 |
1760lm |
|
SM012480-GY |
φ288×22 |
24W |
5730 |
48 |
2640lm |
Product Datasheet

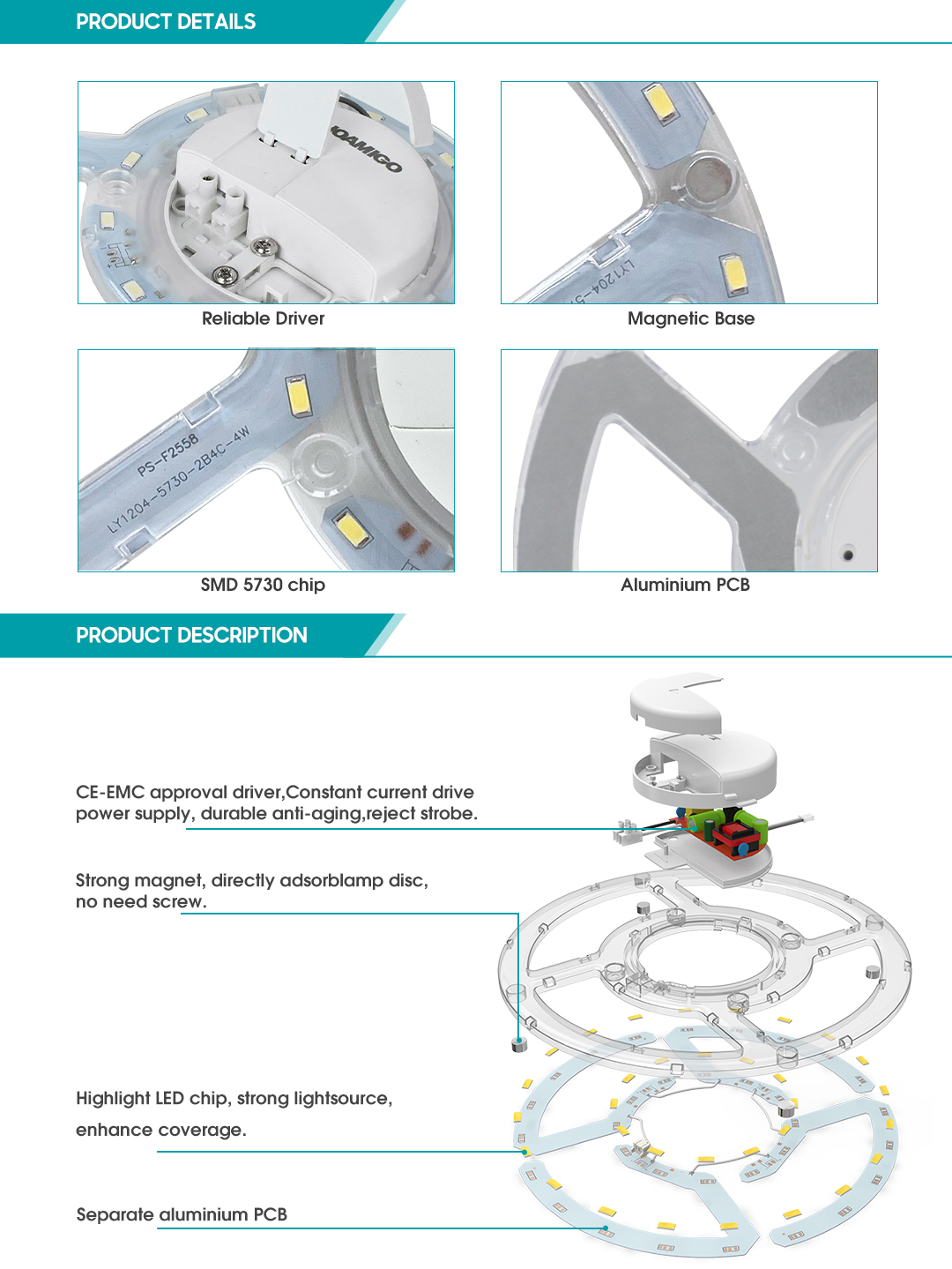

Product Features
1. SM01 series ceiling light source module, easy to replace various ceiling light sources, with various specifications, high color rendering index, visual enjoyment, and restores true colors .
2 . There are two fixing methods, which can be adsorbed by strong magnets, directly adsorbed on the lamp panel, no need to punch holes, no screws to fix, easy and quick to install; it can also be fixed by tightening screws .
3. Provide quick connection terminals, which can be connected without tools, and the operation is simple and convenient, saving worry and effort .
4. Optional drive box, quick replacement, CE-EMC certified drive, constant current drive power, durable anti-aging, and reject stroboscopic .
5. LED SMD technology, using professional optical LED lamp beads, uniform light transmission, bright and durable, comfortable for the eyes. High-brightness LED chips for optimum performance and efficiency .
6. Separate high-quality thickened aluminum base plate, maximum heat dissipation, long service life, durable, comfortable and natural lighting. Optional polycarbonate cover .

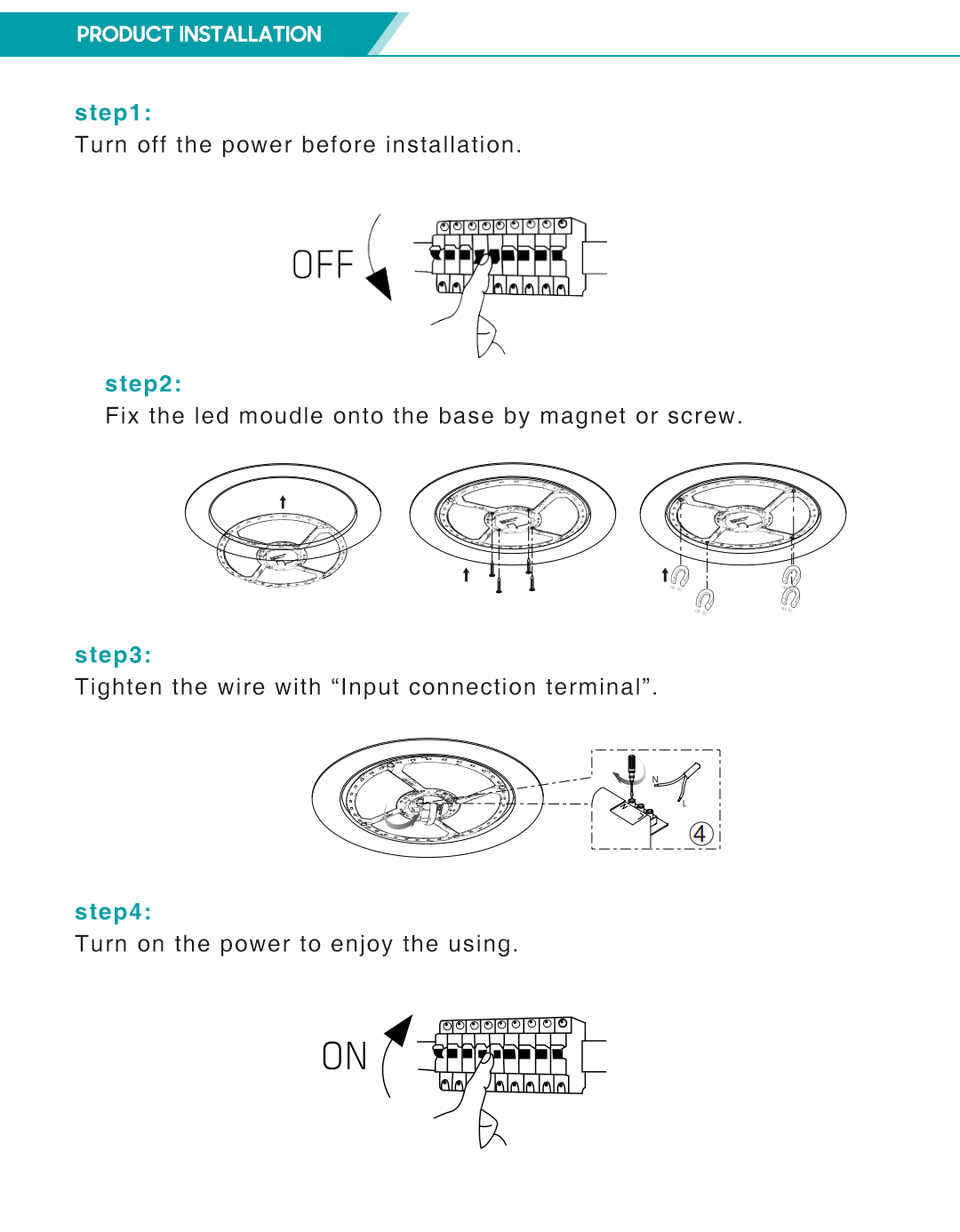

INSTALLATION GUIDE
1.power off before installation.
2.Fix the led module onto the base by magnet or screw.
3.Tighten the wire with “Input connection terminal”.
4.Cover the lampshade and turn on the power.

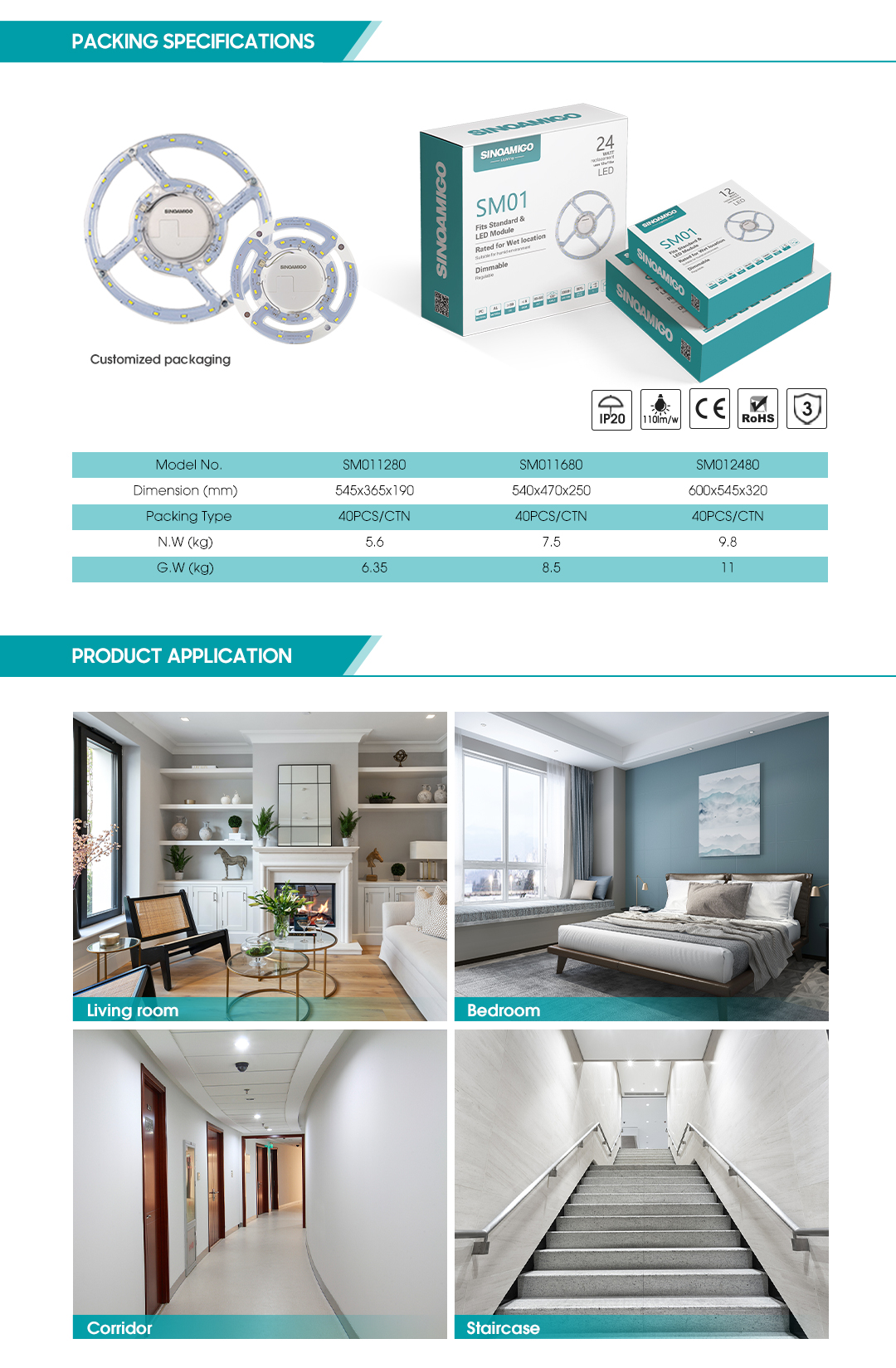

Application Scenarios
Suitable for most ceiling lamps.
