LED Module light

SM02 Series LED Ceiling Light Module

Short Description:

The LED ceiling light module is updated to a linear type without a driver. It’s the perfect LED retrofit for light sources in similar looking round surface mount fixtures while saving 70% on energy costs and avoiding the hassle and cost of ongoing replacements. Small and light, not limited by the size of the lamp, easy to replace at will.


Product Detail

Product Tags

Product Specifications

Model

Dimension(mm)

Power

LED Chip

Number of LED

Luninous flux

SM021280

φ166×22

12W

2835

24

1320lm

SM021680

φ220×22

16W

2835

32

1760lm

SM022480

φ288×22

24W

2835

48

2640lm

SM011280-GY

φ166×22

12W

2835

24

1320lm

SM011680-GY

φ220×22

16W

2835

32

1760lm

SM012480-GY

φ288×22

24W

2835

48

2640lm

Product Datasheet

SM02单页

Product Features

The LED ceiling light module is updated to a linear type without a driver. It's the perfect LED retrofit for light sources in similar looking round surface mount fixtures while saving 70% on energy costs and avoiding the hassle and cost of ongoing replacements. Small and light, not limited by the size of the lamp, easy to replace at will.

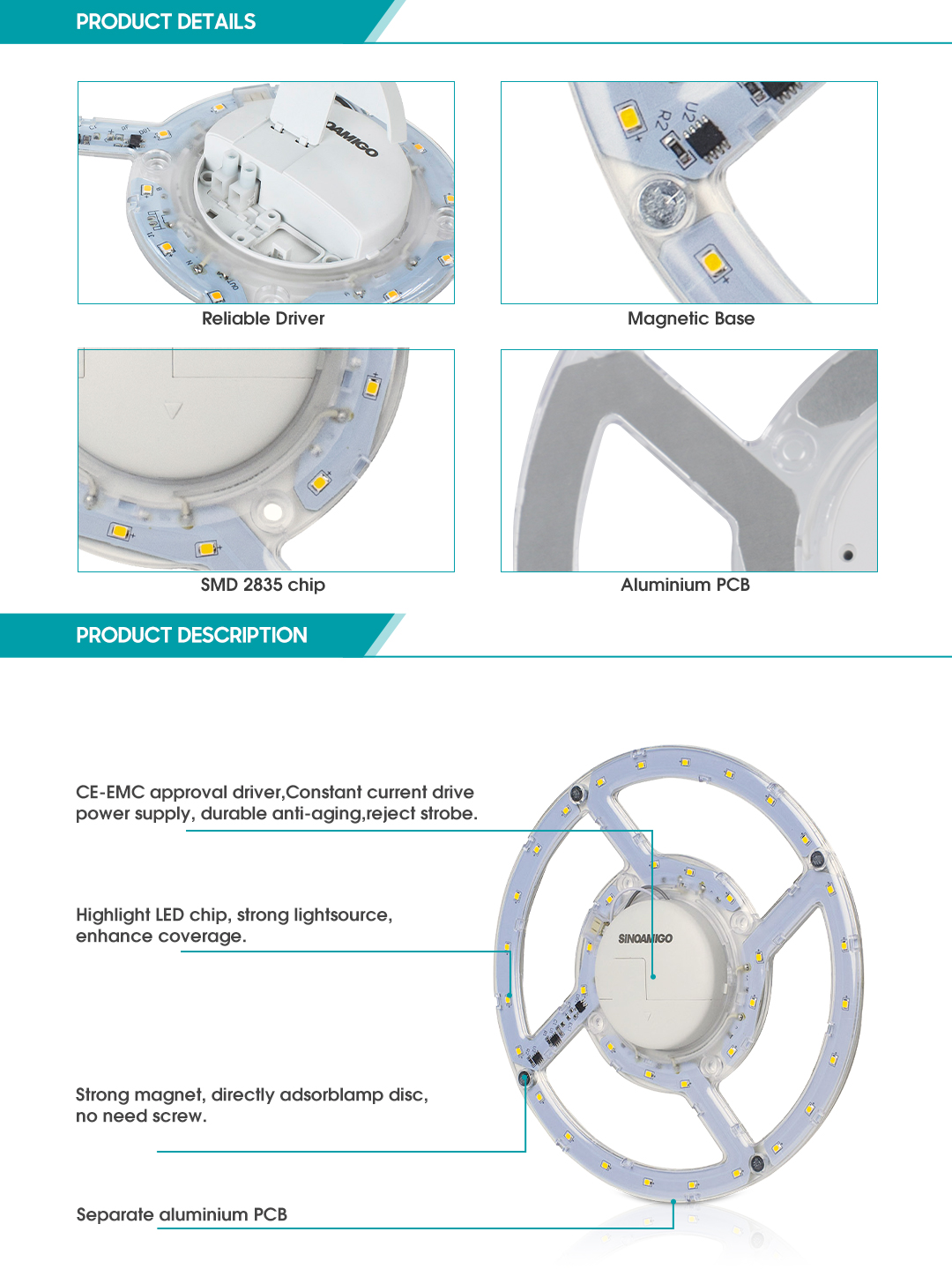

This LED module adopts intelligent IC, constant current drive, bright LED chip, soft and uniform light, no flicker, restores the true color, protects your eyes, the back is made of thick aluminum substrate, better heat dissipation, longer service life .

The module offers a unique magnetic mounting option that does not require any additional fixing to the luminaire base plate, and is equipped with quick-connect terminals for easy operation and easy replacement.

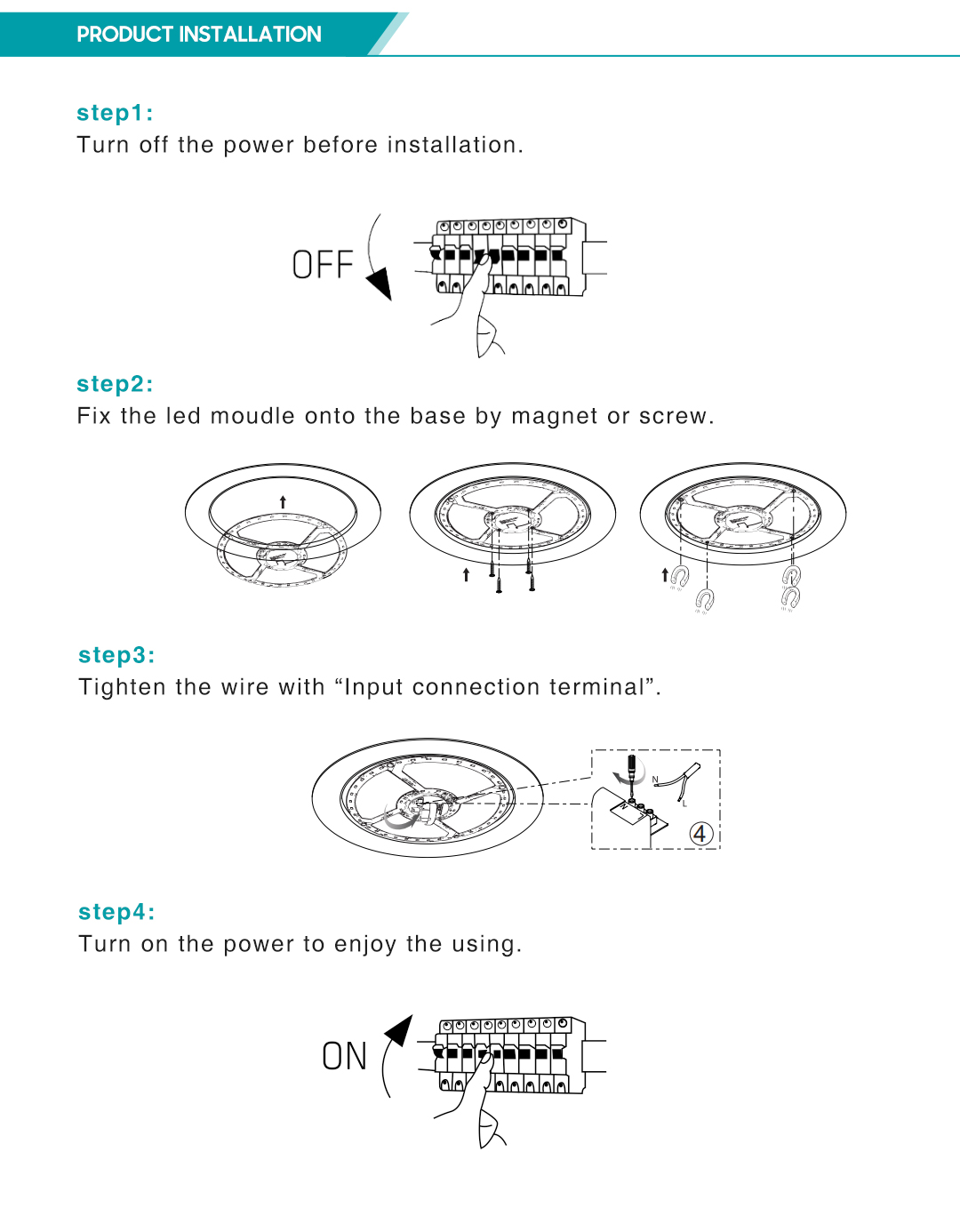

INSTALLATION GUIDE

1. Turn off the power before installation.

2. Remove the lampshade, remove all old light sources, electrical components and screw buckles.

3. Be sure to remove the original ballast and driver

4. Fix the LED module to the base with magnets or screws.

5. Tighten the wires with the "input connection terminal" and check whether it is installed firmly.

6. Put the lampshade on and turn on the power.

Application Scenarios

Suitable for most ceiling lamps.

Product Description

sm02_01 sm02_03 sm02_04 sm02_05
