LED Triproof Light

SW-Q IP65 Waterproof Triproof light

Short Description:

Product parameters:

Product model: SW-Q

Product material: PC material

LED:SMD 2835

Cable Gland: PG13.5

Clip material: S.S.

CRI: Ra80

Type of Protection: IP65

Warranty: 5 Years

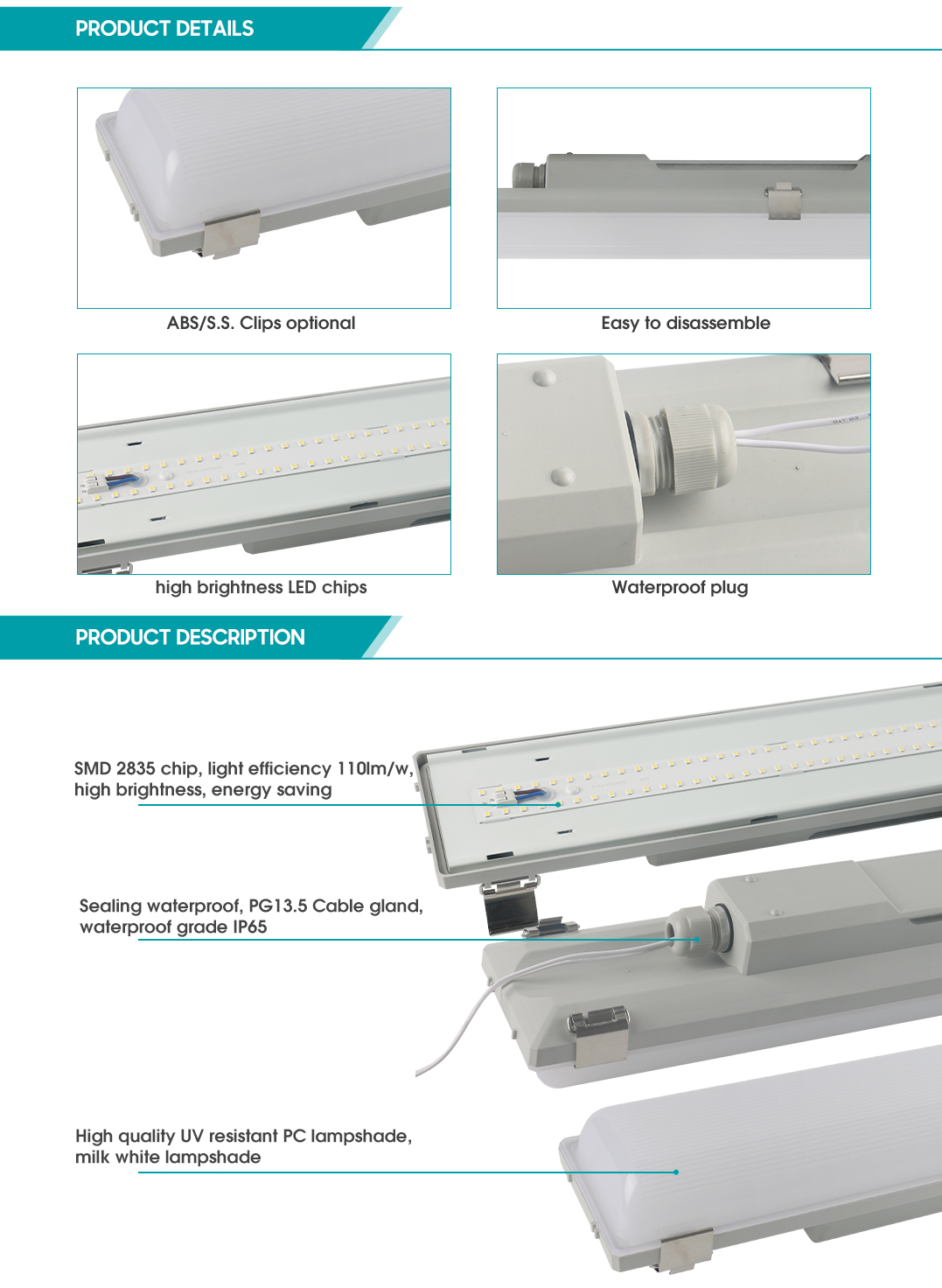

Product Detail

Product Tags

Product Features

1. SW-Q waterproof LED tri-proof light, the light body is made of PC material, light in weight but high in strength, easy to install, and able to withstand any impact or pressure that may occur during use. With stainless steel buckle, it provides extra security and securely fixes the light in place, durable, anti-corrosion and anti-oxidation. This lighting solution is designed to withstand a variety of harsh weather conditions, including heavy rain, snow and extreme temperatures.

2. The milky white lampshade of this tri-proof light can provide bright and uniform light, the light is soft and not dazzling, and the color rendering index is RA80, which can restore the true color of the item very well.

3. SW-Q tri-proof light supports ceiling installation and suspension installation. The back is equipped with a stainless steel mounting bracket, which is more convenient to install and fix.

4. The LED light source used in this product is energy-saving and has a long service life. The interior adopts a double-row lamp bead design, and the high thermal conductivity aluminum substrate/PCB board is the substrate. It is an excellent choice for cost-effective lighting solutions. The power supply is built-in constant voltage and constant current. source, the luminous efficacy reaches 100lm/w, the light output is larger, brighter and more energy-saving.

5. Waterproof grade IP65, with waterproof, dustproof and anti-corrosion functions, suitable for various humid and harsh environments.

Application scenario

It is often used in some public places with humid environment, such as industrial lighting, commercial lighting, underground parking lots, production workshops, chemical plants, warehouses, etc.

Scope of application

Model

Voltage

Dimension(mm)

Power

LED Chip

CCT

Luminous flux

SW-Q20

220-240V

575x92x80

20W

2835

3000-6500K

2000lm

SW-Q40

220-240V

1175x92x80

40W

2835

3000-6500K

4000lm

SW-Q60

220-240V

1475x92x80

60W

2835

3000-6500K

6000lm
