LED Triproof Light

SW-FF LED patch Triproof light

Short Description:

1. VDE had already certified the wire, lamp holder, and rail station.

2. Lock architecture, easy disassembly and assembly, optional PC clip or stainless steel clip, with ceiling bracket on the back, easy to install and fix, suspended ceiling or ceiling installation, high thermal baking paint treatment, anti-oxidation, good heat dissipation effectiveness,


Product Detail

Product Tags

Product parameters

Product model: SW-FF
Product material: PC /PC material
LED: Epistar 2835/Bridgelux 2835
Cable Gland: PG13.5
CRI: Ra80
Type of Protection: IP65
Warranty: 5 Years

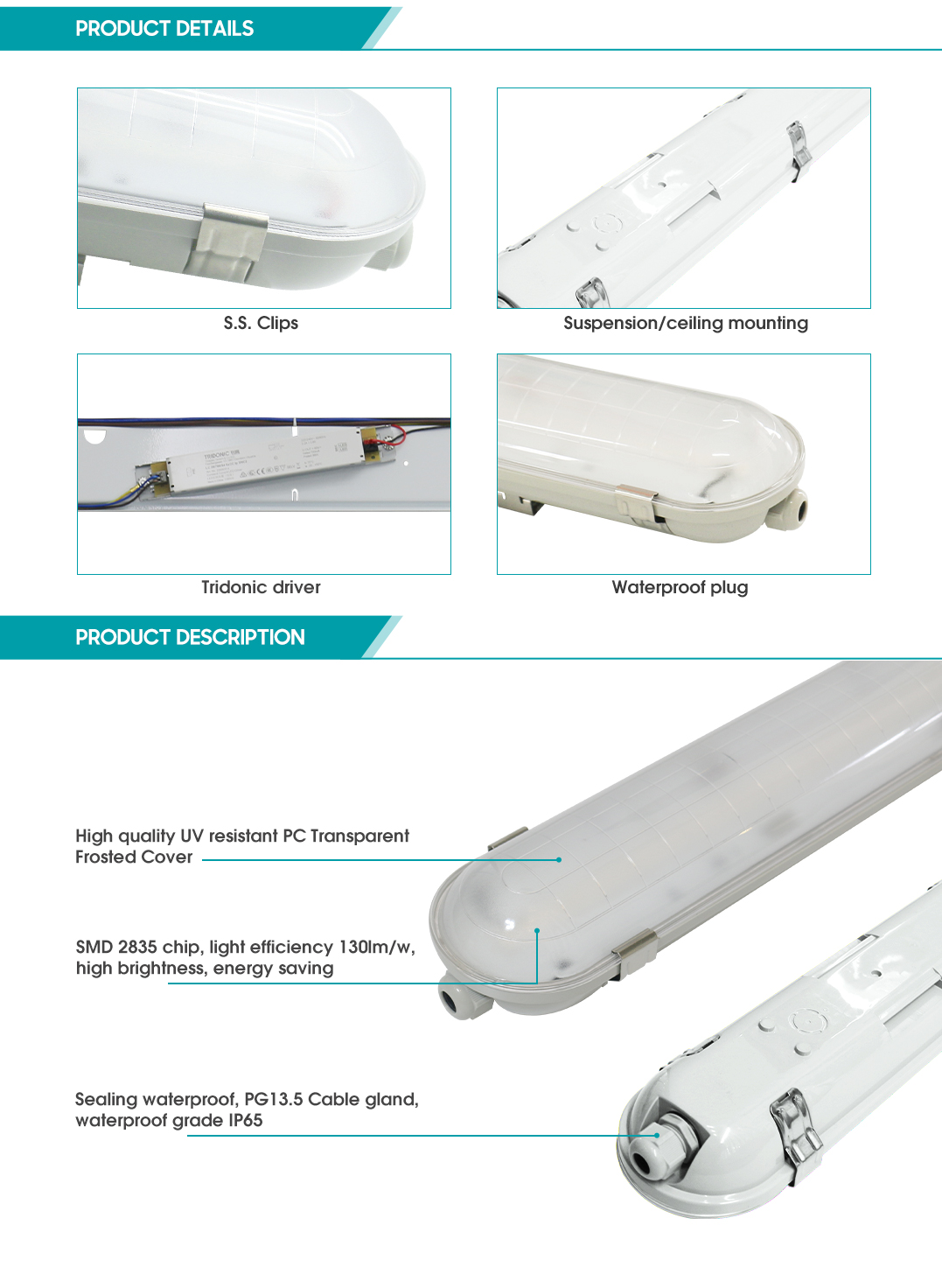

Product Features

1. VDE had already certified the wire, lamp holder, and rail station.
2. Lock architecture, easy disassembly and assembly, optional PC clip or stainless steel clip, with ceiling bracket on the back, easy to install and fix, suspended ceiling or ceiling installation, high thermal baking paint treatment, anti-oxidation, good heat dissipation effectiveness,
3. The lamp body is made of anti-ultraviolet PC material of high quality, and the lampshade is made of frosted material. The light is even and soft, bright but not blinding. IK08 compression grade, the lamp is unlikely to be damaged under pressure, high light transmittance, soft and uniform light, protective goggles
4. LED light effectiveness can reach 135 lumens because of the integrated high-brightness LED chip, SDCM5.
5. Fashionable, full specs that are appropriate for a variety of settings.
6. No noise, low temperature rise, and power factor greater than 0.
7. High efficiency, energy savings, safety, and dependability
8. When exposed to sunlight and ultraviolet radiation, this tri-proof light will not become yellow or blur within 5 years.
9. Dustproof specification IP65, can be used in extremely hard settings.

Installation Instructions

1.Before installing, turn off the power.
2.Connect the wire and put the material package together.
3.Clip the lid shut and secure it to the brackers.

Suitable Location

Overpasses, factories, pharmaceutical plants, and food processing plants The cooking area. Bathroom and sauna, as well as a pedestrian passage Tunnels and underground factories, parking lots, waiting areas, and other public outdoor spaces

Product parameters

Model

Voltage

Dimension(mm)

Power

LED Chip

Number of LED

Luminous flux

SW-FF20

100-240V

620x100x75

20W

2835

48

2200lm

SW-FF40

100-240V

1220x100x75

40W

2835

90

4400lm

SW-FF60

100-240V

1520x100x75

60W

2835

132

6600lm
