Highbay Light

SH-O4 bright LED Highbay Light

Short Description:

product description:

Product number: SH-O4

Body Materiall: Die-cast Aluminum Housing

Warranty: 5 years

IP Rating: IP65

CCT:3000K / 4000K /6000K

Light Distributions:  60° 90° 120°

Housing Color:Black


Product Detail

Product Tags

Product Specifications

Model

Dimension(mm)

Power

 Nominal  Voltage

Lumen Output (±5%)

IP  Protection

IK Protection

SH-O4100

Ø230×137

100W

100-277V

15000LM

IP65

IK08

SH-O4150

Ø270×138

150W

100-277V

22500LM

IP65

IK08

SH-O4200

Ø310×142

200W

100-277V

30000LM

IP65

IK08

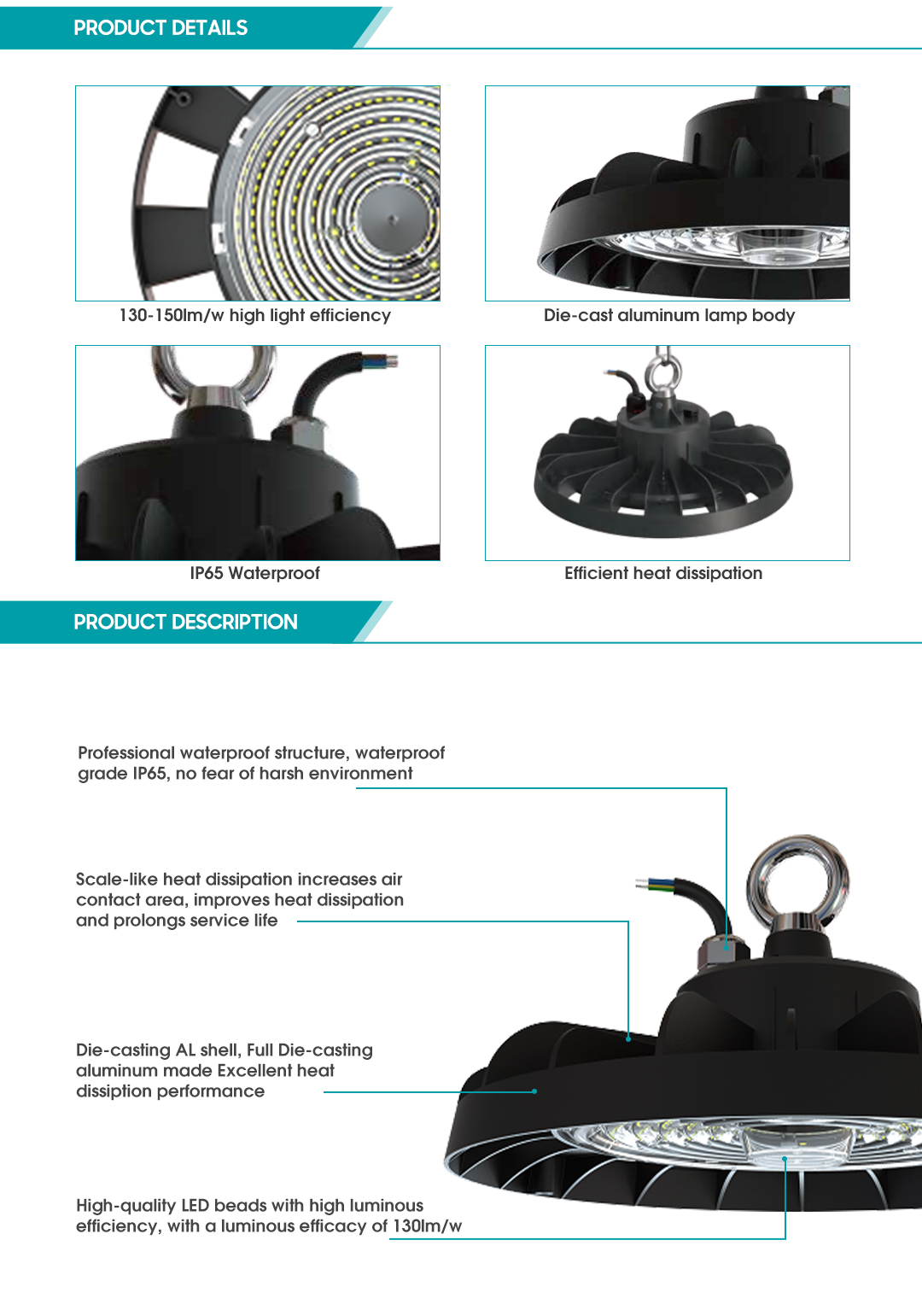

Product Features

1.SH-O4 industrial and mining lamp is made of thickened aluminum alloy lamp body and is die-cast in one piece. It has excellent overall protective performance, fast heat dissipation, good thermal conductivity, high temperature resistance, corrosion resistance, and can adapt to various harsh environments.



2. SH-O4 industrial and mining lighting efficiency is 150LM/W±10%, with high brightness, low light attenuation and a service life of up to 10,000 hours. Static protection. Ra80 color rendering index, pure light color, restoring environmental colors.



3. The lamp beads emit uniform light, have high light transmittance, increase the luminous area, and provide a wider irradiation range. It is impact resistant, optimizes lighting performance and reduces glare. The mounting bracket can adjust the angle of the lamp according to the hole position, making it convenient for angle adjustment and installation. The light-emitting angles are available in 60°, 90°, 120° and other angles to meet professional light distribution.



4. Integrated drive design, passed extreme environment testing, protection grade IP65, waterproof and dustproof design, can adapt to various severe weather changes, curved edge anti-glare aluminum cover, the cover can be equipped separately, more convenient for cleaning and maintenance.

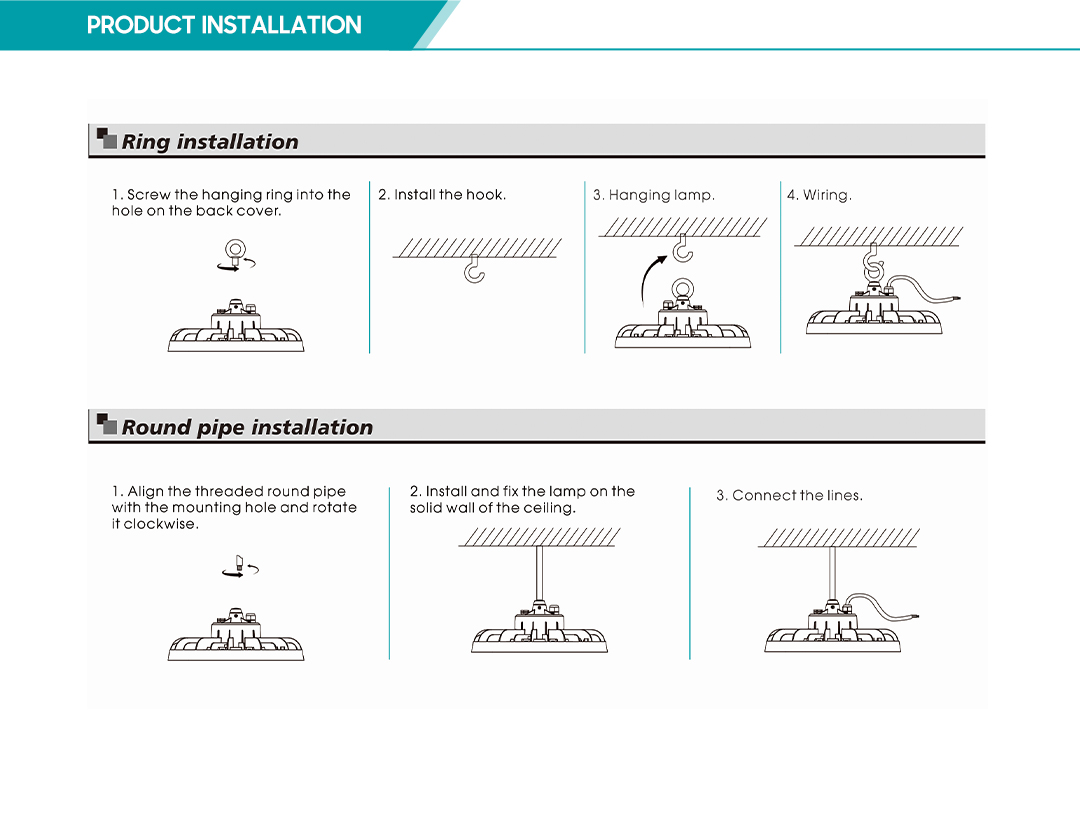

5. A variety of models and specifications are available, which can be used in a variety of scenarios. Provides various installation methods such as boom installation, lifting ring installation, and bracket installation to meet various customization needs.



Application scenario

Widely used in high-bay industries, workshops, warehouses, logistics center display halls, highway toll stations, petrol stations, supermarkets, gymnasiums, shipyards, farmers markets, and other areas that demand lighting.
