Product Specifications
Model |
Dimension(mm) |
Power |
Nominal Voltage |
Lumen Output (±5%) |
IP Protection |
IK Protection |
SH-O2100S |
Ø286×147 |
100W |
100-277V |
14500LM |
IP66 |
IK10 |
SH-O2150S |
Ø286×147 |
150W |
100-277V |
21750LM |
IP66 |
IK10 |
SH-O2150M |
Ø330×165 |
150W |
100-277V |
21750LM |
IP66 |
IK10 |
SH-O2200M |
Ø330×165 |
200W | 100-277V | 29000LM | IP66 | IK10 |
Product Features

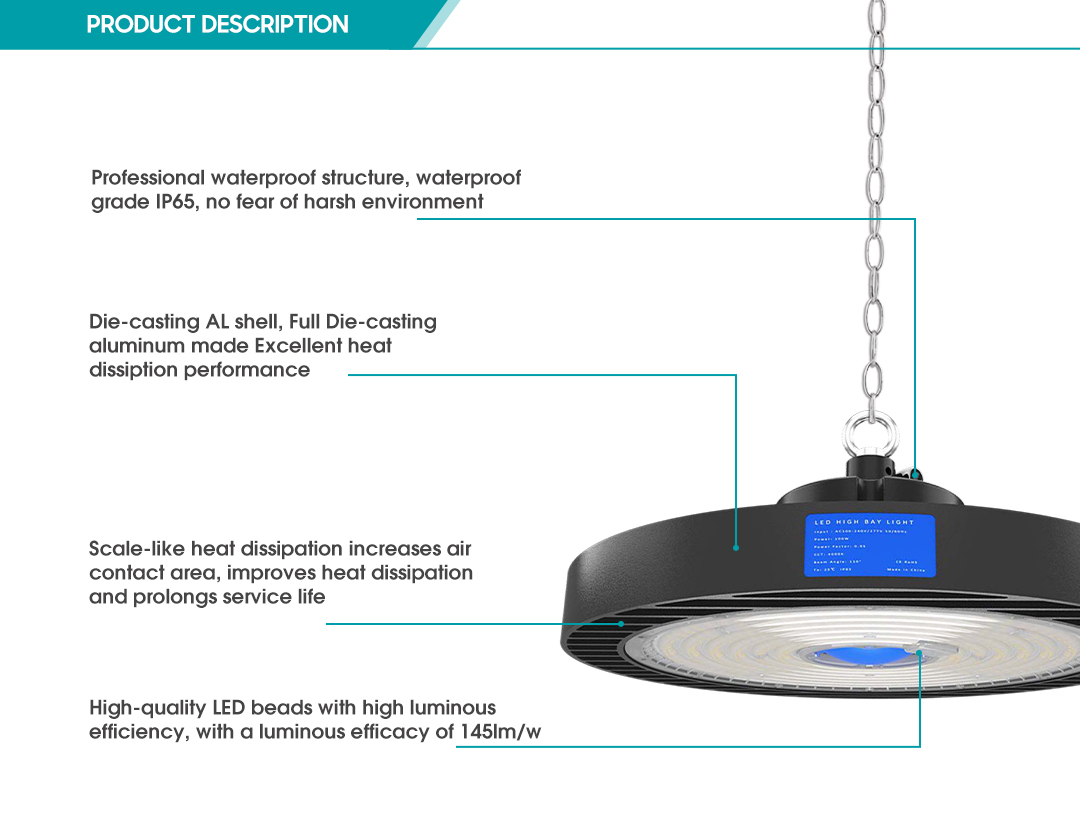

1.SH-O2 high bay lamp adopts one-piece die-casting process, precision shaping, die-casting aluminum material for the whole lamp, sufficient material, large heat dissipation area, good thermal conductivity, high temperature resistance, and corrosion resistance. IP66 level protection, high-strength protection process requirements. Waterproof and dustproof design, can adapt to various harsh outdoor environments.
2. The lamp body adopts a professional heat dissipation structure, with beautiful appearance and hidden air duct, transparent inside and outside, forming a 3D three-dimensional heat dissipation with the upper and lower air ducts of the heat sink, dissipating heat quickly, and the lamp life is longer.
3. Using Lumileds 3030 lamp beads, the luminous efficacy height is 150lm/w, high brightness, low light decay, five-year warranty, service life of up to 10,000 hours, and low maintenance cost. Color rendering index Ra80, restore the environment color.
4. PC optical lens, lamp beads emit evenly and softly, high light transmittance, impact resistance, optimize lighting performance while reducing glare, increase light-emitting area, and wider irradiation range. The lens is available in multiple angles such as 60°, 90°, 80°x140°, etc., to meet different light distribution requirements.
5. Built-in drive, using Meanwell high-end drive power intelligent IC control circuit switch, with over-temperature protection, over-voltage protection, short-circuit protection, anti-surge and other special features.

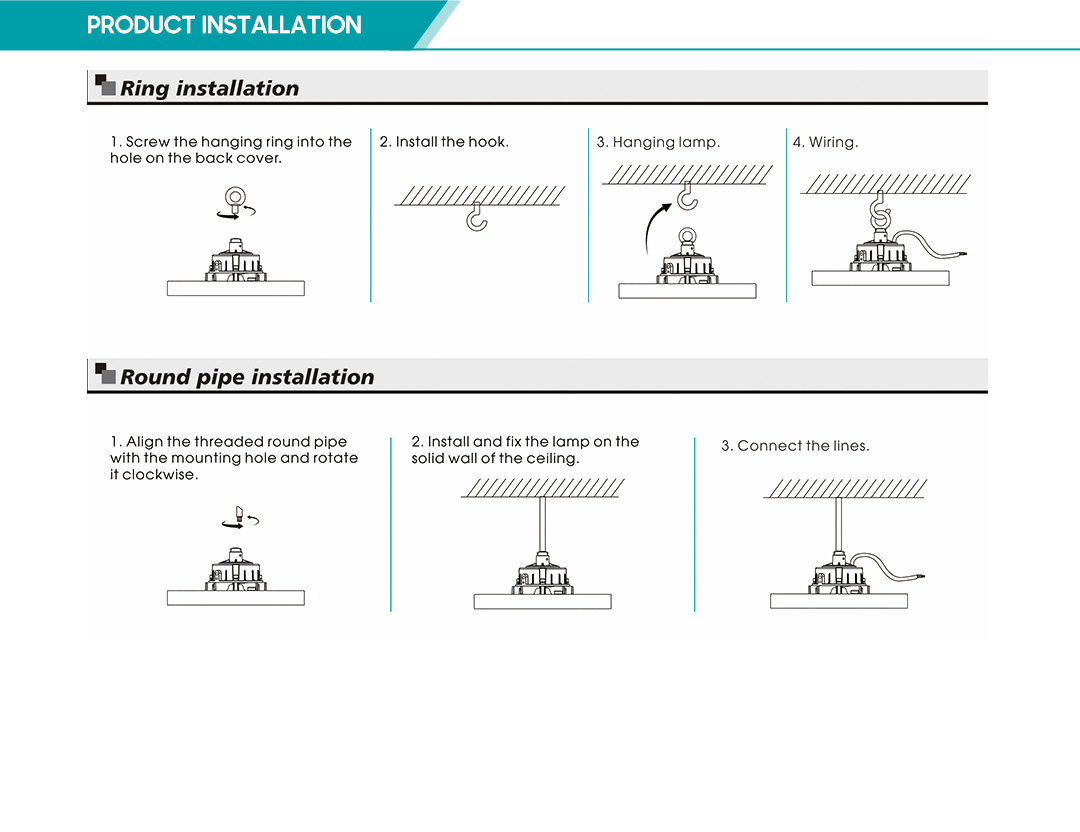

6. The lampshade is made of high-quality PC mask with high hardness and impact resistance level IK10, which has a good explosion-proof effect. Support a variety of installation methods, such as ring installation, chain installation, bracket installation, boom suspension installation, to meet various customization needs.
Application scenario
It is widely used in the lighting of high-bay factories, workshops, warehouses, exhibition halls, gymnasiums, waiting rooms, stations, airports, shopping malls, hypermarkets, outdoor buildings and other places.
