Highbay Light

SH-O15 LED HighBay Lights Optional Radar Sensor

Short Description:

Product Description:

Product No.: SH-O15 High Bay Light

Light Body Material: Die-cast Aluminum Shell

Warranty Period: 5 Years

IP Rating: IP65

Color Temperature: 3000K / 4000K / 6000K

Beam Angle: 60° 90° 120°

Shell Color: Black


Product Detail

Product Tags

Product Specifications

Model

Dimension(mm)

Power

 Nominal  Voltage

Lumen Output (±5%)

IP  Protection

IK Protection

SH-O15-100

Ø250×143

100W

AC100-270V

16000LM

IP65

IK08

SH-O15-150

Ø279×145

150W

AC100-270V

24000LM

IP65

IK08

SH-O15-200

Ø320×145

200W

AC100-270V

32000LM

IP65

IK08

Product Features

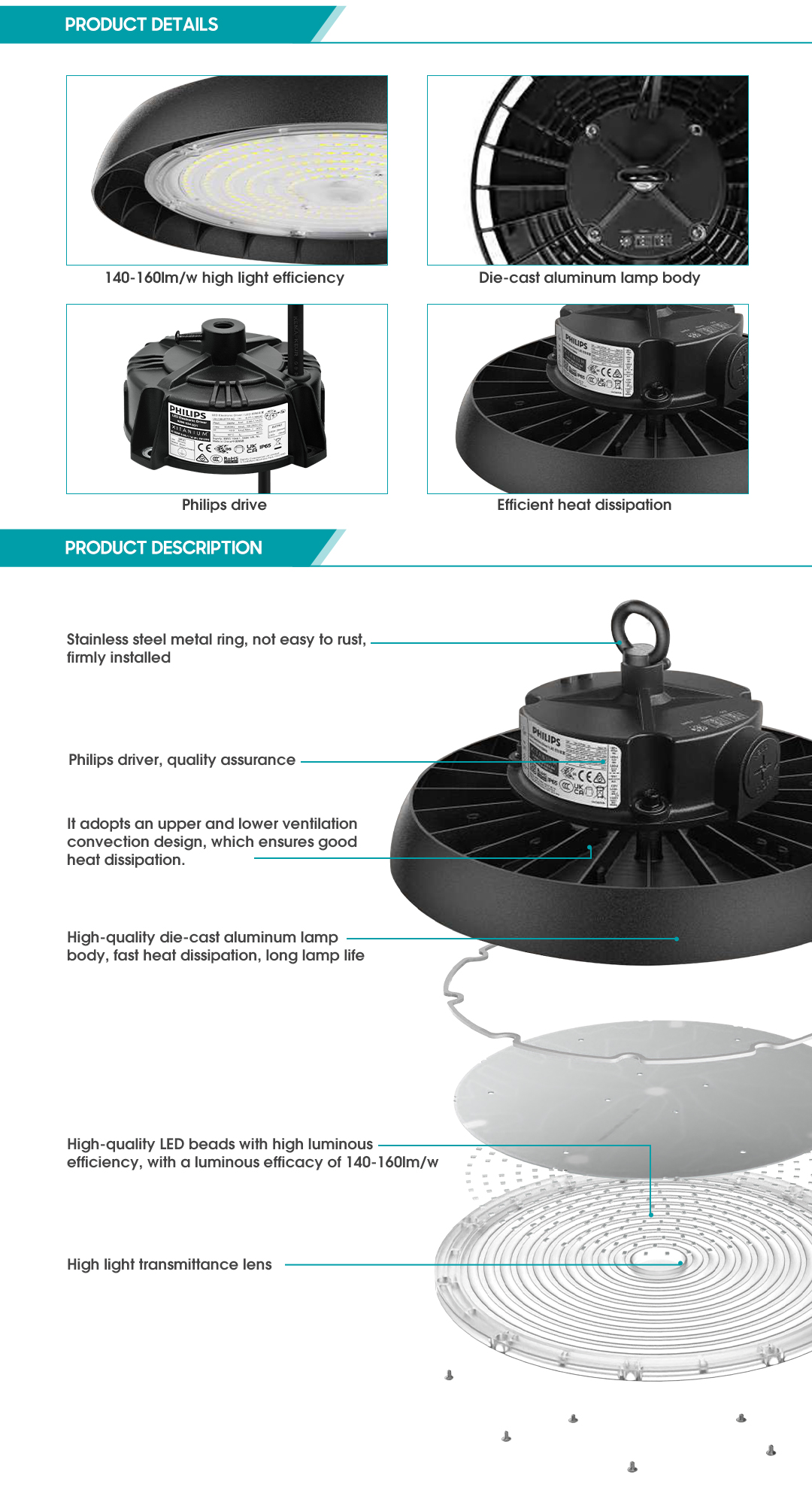

1. SH-O15 high bay light features exquisite craftsmanship with both attractive appearance and practical performance. The die-cast aluminum housing is corrosion-resistant, sturdy and durable to extend service life. Equipped with hollow aluminum heat sink module and convection cooling design, it ensures smooth air circulation and excellent heat dissipation.

2. SH-O15 high bay light adopts Lumileds high-lumen LED chips with luminous efficacy of 130–200lm/W, high brightness and a long lifespan of 50,000 hours. It comes with imported optical lens with transmittance up to 95%. Diamond surface reflection technology delivers high light reflectivity, wider illumination range and more even light distribution. Multiple lens options are available for flexible light distribution to meet different lighting requirements.

3. SH-O15 high bay light is fitted with PHILIPS driver, which provides stable output in various environments. It improves lighting efficiency and cuts energy consumption, delivering uniform and comfortable light with reduced glare to protect eyes.

4. Dimmable & CCT adjustable (optional): 3 power levels (100% / 80% / 60%) for brightness adjustment as needed to save energy flexibly; 3 CCT options (3000K warm white / 4500K neutral white / 6500K cool white) for easy color temperature switching.

5. Intelligent radar sensor optional: sensing distance 10–12 meters with wide-angle detection. It turns on when motion is detected and dims down or turns off when no movement, realizing dynamic energy saving. Ideal for warehouses, aisles and other areas with intermittent human activity.

Application scenario

Widely used in high-bay industries, workshops, warehouses, logistics center showrooms, highway toll stations, gas stations, supermarkets, gymnasiums, shipyards, farmers' markets and other areas that require lighting.

Product Description

SH-O15 highbay lightSH-O15 highbay lighthttps://www.sinoamigolight.com/led-highbay-light/
