Highbay Light

SH-O14 High-brightness Classic Engineering Style Suspended LED High Bay Light

Short Description:

Product Description: Product No.: SH-O14 High Bay Light Light Body Material: Aviation Aluminum Shell Warranty Period: 5 Years IP Rating: IP44 Color Temperature: 3000K / 4000K / 6000K Beam Angle: 60° 90° 120° Shell Color: Silver


Product Detail

Product Tags

Product Specifications

Model

Dimension(mm)

Power

 Nominal  Voltage

Lumen Output (±5%)

IP  Protection

IK Protection

SH-O14100 Φ452x278 100W

220-240V

8000LM

IP44

IK08

SH-O14150 Φ502x298 150W

220-240V

12000LM

IP44

IK08

SH-O14200 Φ502x298 200W 220-240V 16000LM IP44 IK08
SH-O14300 Φ572x378 300W 220-240V 24000LM IP44 IK08
SH-O14400 Φ572x378 400W 220-240V  32000LM   IP44  IK08

Product Features

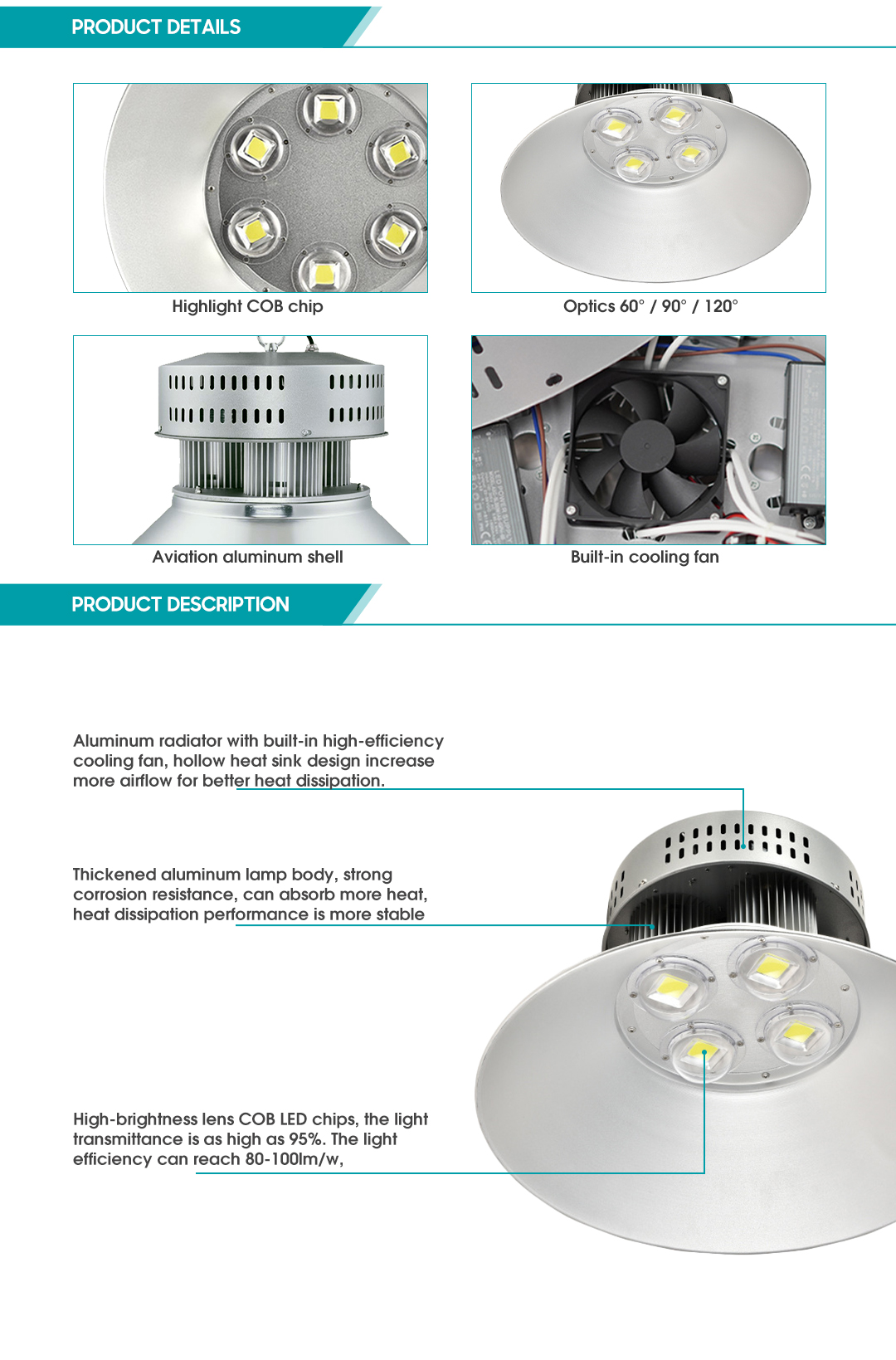

1.SH-O14 classic highbay light adopts aviation grade aluminum, corrosion and rust prevention, durable, suitable for harsh environment, longer service life. Scale-type cooling structure, aluminum radiator module, built-in efficient DC ball fan, high cooling efficiency, to ensure long-term stable work, reduce maintenance costs.

2. SH-O14 highbay light adopts high brightness and low power consumption COB light source, with high light transmission lens, light efficiency 90-100lm/w, more power saving than traditional lamps. High light shade design, LED light emitting wider and softer, greatly improve the lamp source utilization. Light transmission lens and lamp shade design for more uniform light, wide coverage, suitable for large space lighting. Luminous Angle 60°~120°, the whole lamp lighting effect is good, irradiation area is large.

3.IP44 protection grade, with moisture, anti-corrosion, shock-proof function, can well protect lightning and surge, reliable quality, safe and reliable, better protect your electricity safety.

4. Five specifications, power optional, can meet the needs of different areas and heights, a wide range of application scenarios. Easy to install, support lifting installation, save time and cost.

Application scenario

Widely used in supermarkets, large workshops, steel mills, shipyards, machinery manufacturing plants, hardware workshops, warehouses and other places with high-altitude lighting.
