Product Specifications
Model |
Dimension(mm) |
Power |
Nominal Voltage |
Lumen Output (±5%) |
IP Protection |
IK Protection |
SH-O13-100 |
Ø302×111 |
100W |
AC100-270V |
15000LM |
IP65 |
IK08 |
SH-O13-150 |
Ø351×125 |
150W |
AC100-270V |
22500LM |
IP65 |
IK08 |
SH-O13-200 |
Ø370×125 |
200W |
AC100-270V |
30000LM |
IP65 |
IK08 |
SH-O13-240 |
Ø370×125 |
240W | AC100-270V | 36000LM | IP65 | IK08 |

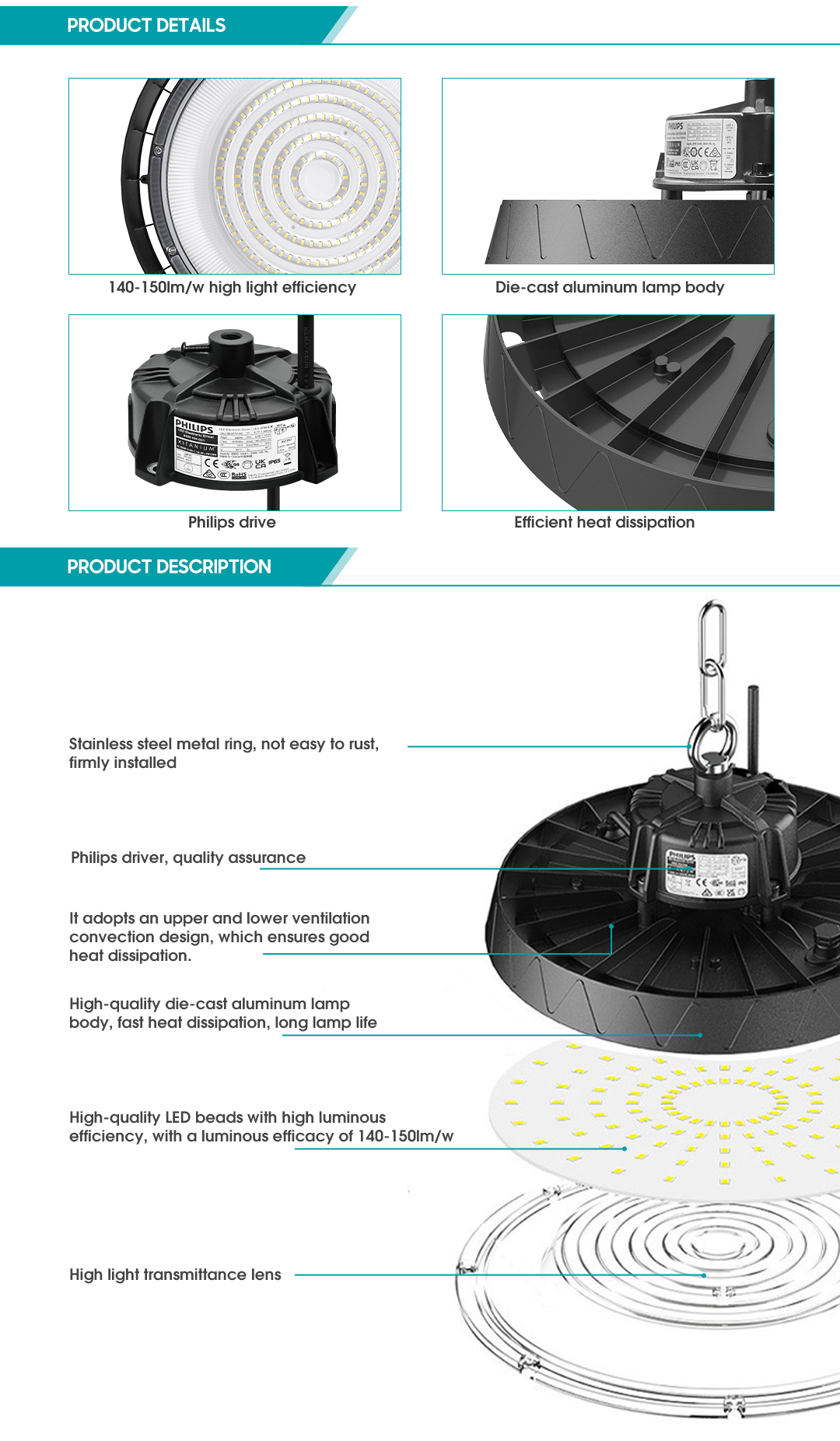

Product Features
1.SH-O13 high bay light adopts die-cast aluminum shell, finely crafted, using one-piece molding technology, simple and beautiful appearance, fast heat conduction, good heat dissipation performance, anti-corrosion and rust prevention, durable, longer service life.
2.SH-O13 high bay light lighting efficiency can reach 140-150LM/W, high lumen LED, service life of 50,000 hours, lmported optical lens, its luminous efficiency up to 95%, luminous angles are 60°, 90°, 120° and other angles optional, to meet the lighting needs of different scenes.
3. High-efficiency heat dissipation aluminum lamp body, the scale-type radiator design on the back increases air convection and has better heat dissipation performance.
4. Using PHILIPS drive, it can provide stable output in various environments, improve lighting efficiency, reduce energy consumption, provide uniform and comfortable light, reduce glare, and protect eyes.
5. IP65 protection level, thickened waterproof shell equipped with waterproof plug and waterproof rubber ring, can well prevent water vapor and mosquitoes from entering the lamp body, extend service life, and have an ultra-long five-year warranty.

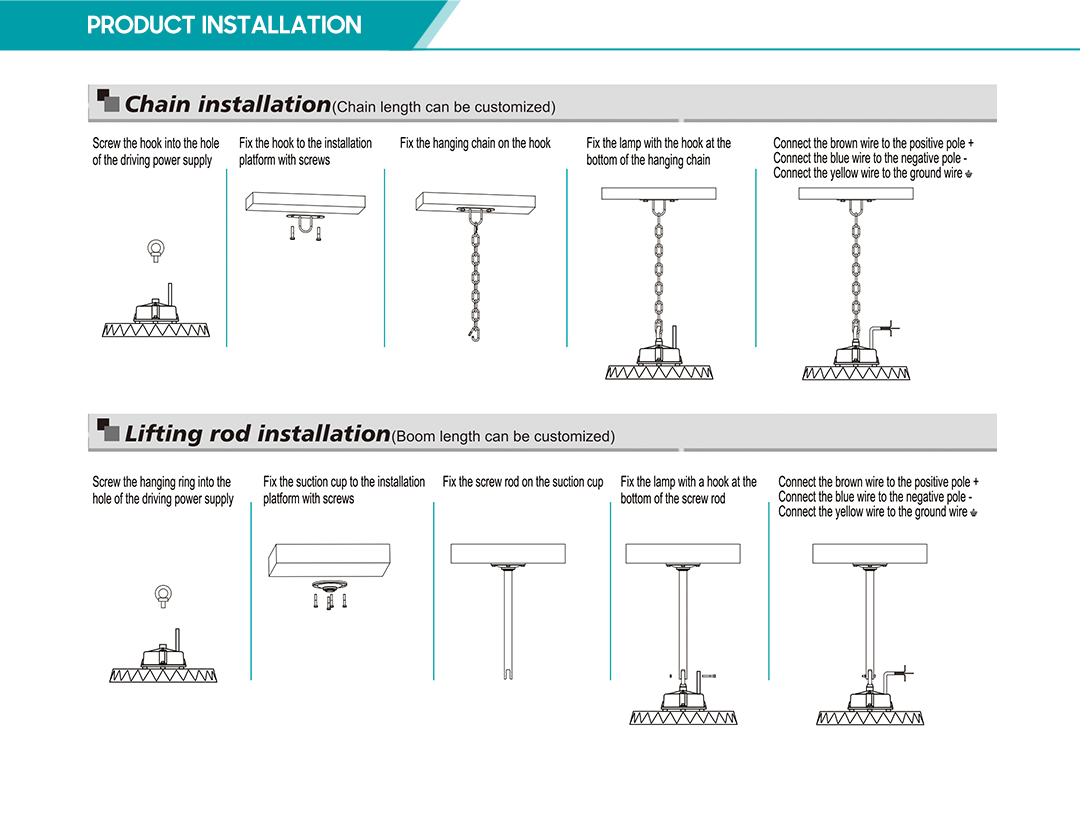

6. SH-O13 high bay lamp has 100W/150W/200W/240W models and specifications to choose from, with a wide range of application scenarios. It can be installed with a boom or a ring to meet the installation needs of various factories.
Application scenario
Widely used in high-bay industries, workshops, warehouses, logistics center showrooms, highway toll stations, gas stations, supermarkets, gymnasiums, shipyards, farmers' markets and other areas that require lighting.
