Product Specifications
Model |
Dimension(mm) |
Power |
Nominal Voltage |
Lumen Output (±5%) |
IP Protection |
IK Protection |
SH-O11-100 |
Ø302×112 |
100W |
AC100-270V |
15000LM |
IP65 |
IK08 |
SH-O11-150 |
Ø351×115 |
150W |
AC100-270V |
22500LM |
IP65 |
IK08 |
SH-O11-200 |
Ø370×120 |
200W |
AC100-270V |
30000LM |
IP65 |
IK08 |
SH-O11-240 |
Ø370×120 |
240W | AC100-270V | 36000LM | IP65 | IK08 |
Product Features

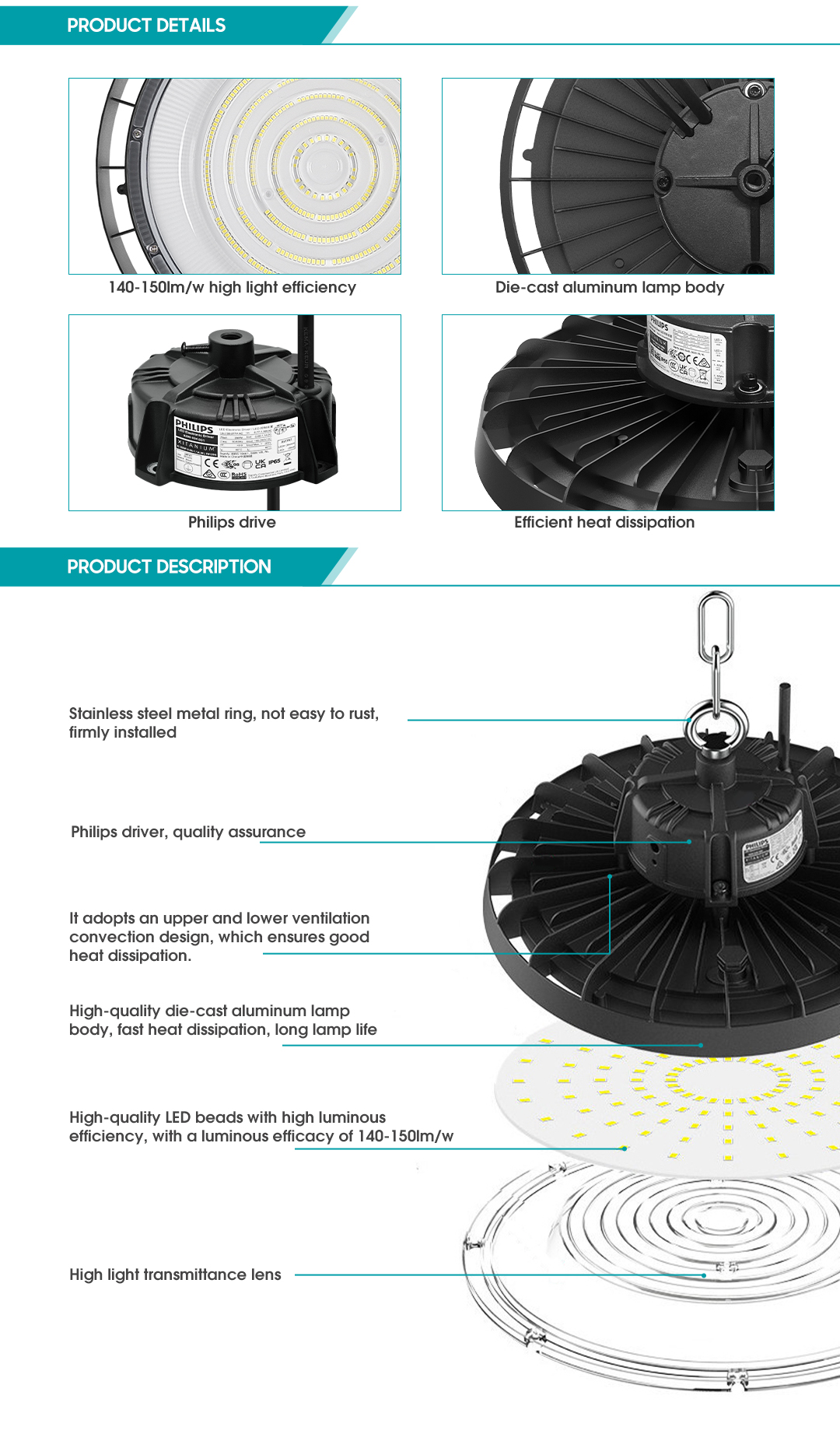

1. SH-O12 high bay light adopts die-cast aluminum integrated molding technology, fast heat conduction, efficient heat dissipation, and the scale-type heat sink design on the back increases air convection and better heat dissipation performance. Anti-corrosion and rust-proof, durable and longer service life.
2.SH-O12 high bay light adopts high lumen LED, lighting efficiency can reach 140-150LM/W, service life is 50000 hours, lmported optical lens, its luminous efficiency up to 95%, luminous angles are optional at 60°, 90°, 120°, etc., to meet the lighting needs of different scenes.
3. SH-O12 high bay light adopts PHILIPS driver, which can provide stable output in various environments, improve lighting efficiency, reduce energy consumption, provide uniform and comfortable light, reduce glare, and protect eyes.
4. Protection grade IP65, thickened waterproof shell equipped with waterproof plug and waterproof rubber ring, can well prevent water vapor and mosquitoes from entering the lamp body, extend service life, service life exceeds 50000H.

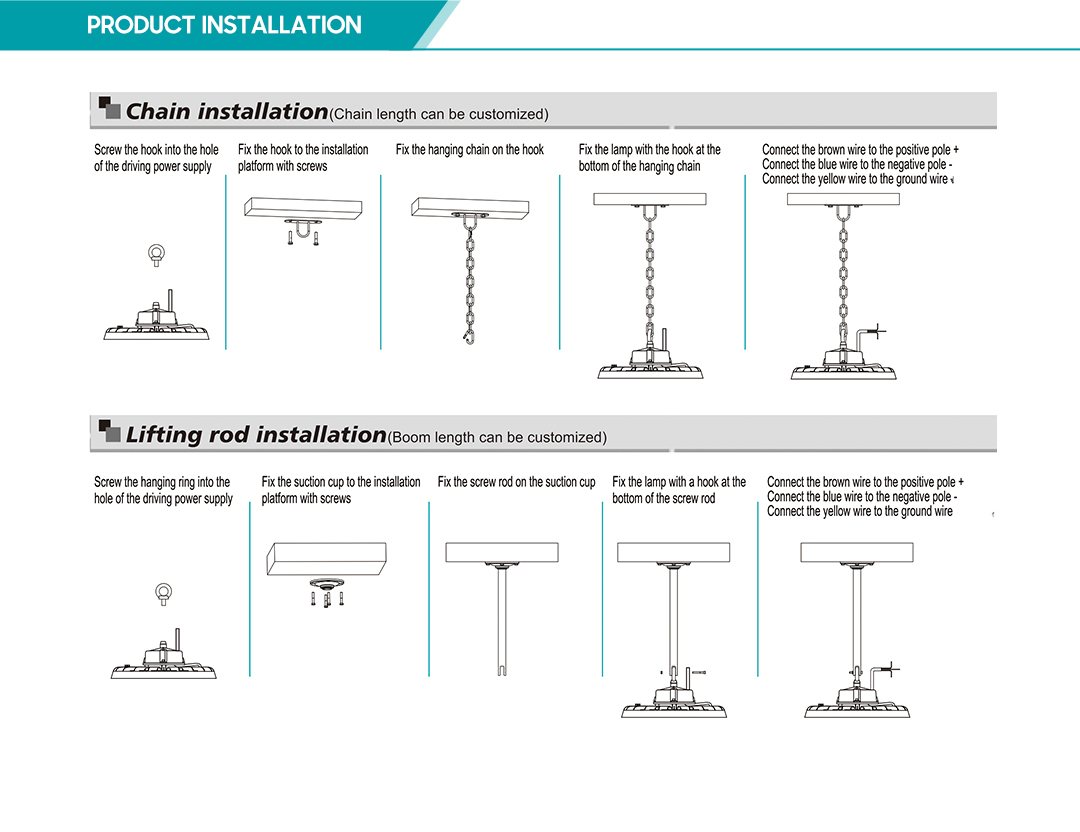

5. SH-O12 high bay light has complete specifications, with 100W/150W/200W/240W models to choose from, which is larger in size and has a wider lighting range than traditional high bay lights. Wide range of application scenarios. It can be installed by hanging rods or hanging rings to meet the installation requirements of various factories.
Application scenario
Widely used in high-bay industries, workshops, warehouses, logistics center showrooms, highway toll stations, gas stations, supermarkets, gymnasiums, shipyards, farmers' markets and other areas that require lighting.
