Highbay Light

SH-O11 LED high-efficiency IP65 waterproof high bay light

Short Description:

Product Description:

Product No.: SH-O11 High Bay Light

Light Body Material: Die-cast Aluminum Shell

Warranty Period: 5 Years

IP Rating: IP65

Light efficiency: 150-160lm/w

Color Temperature: 3000K / 4000K / 6000K

Beam Angle: 60° 90° 120°

Shell Color: Black


Product Detail

Product Tags

Product Specifications

Model

Dimension(mm)

Power

 Nominal  Voltage

Lumen Output (±5%)

IP  Protection

IK Protection

SH-O11-100

Ø240×115

100W

AC100-270V

16000LM

IP65

IK08

SH-O11-150

Ø280×118

150W

AC100-270V

24000LM

IP65

IK08

SH-O11-200

Ø320×119

200W

AC100-270V

32000LM

IP65

IK08

Product Features

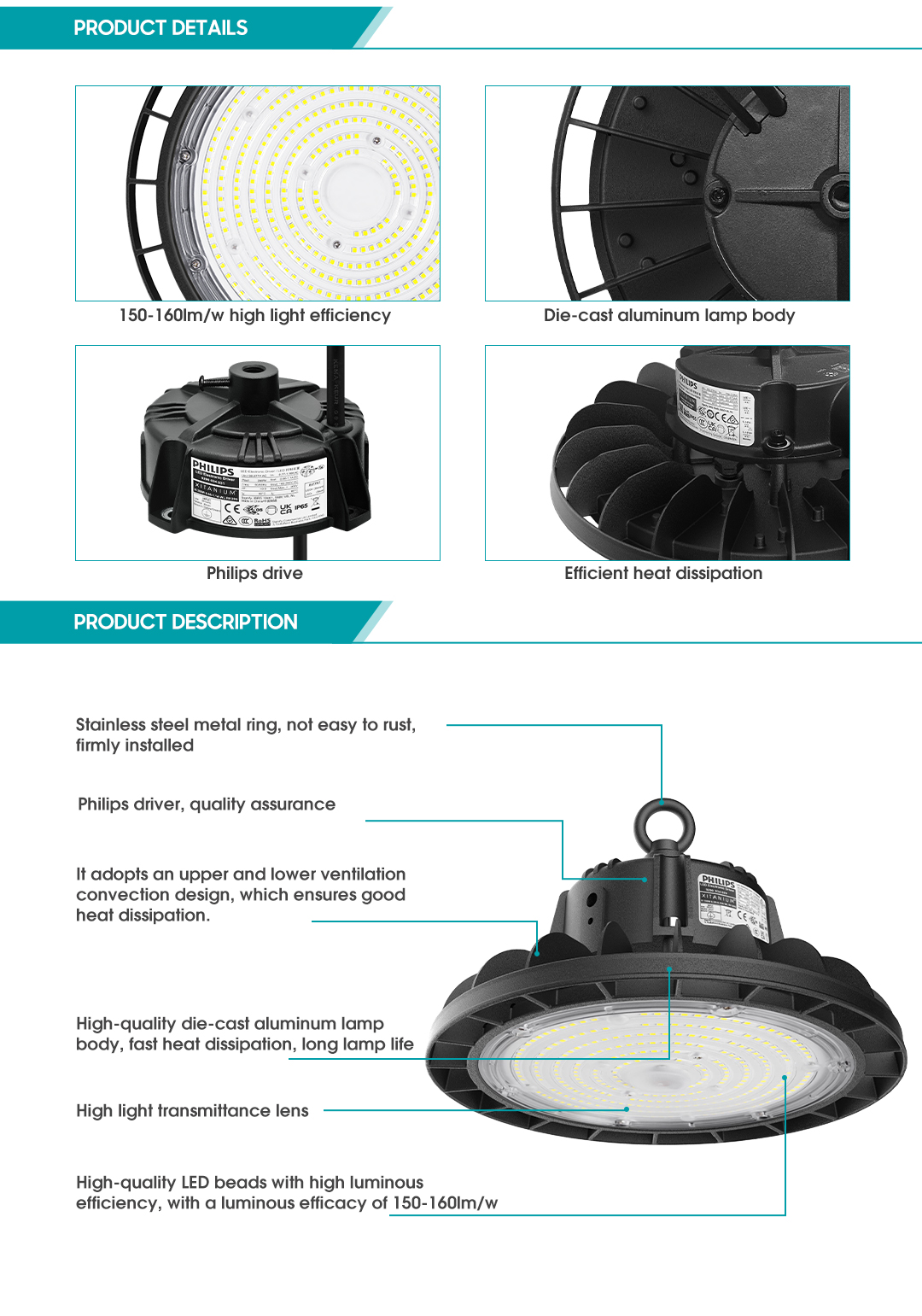

1.SH-O11 high bay light adopts high-quality aluminum die-casting integrated molding technology, and the scale-type heat sink design on the back increases air convection, fast heat conduction, efficient heat dissipation, and better heat dissipation performance. Anti-corrosion and rust-proof, durable and longer service life.



2. SH-O11 high bay light adopts high lumen LED, lighting efficiency can reach 150-160LM/W, service life is 50000 hours, lmported optical lens, its luminous efficiency up to 95%, luminous angles are available at 60°, 90°, 120° and other angles to meet the lighting needs of different scenes.



3. SH-O11 high bay light adopts PHILIPS driver, which can provide stable output in various environments, improve lighting efficiency, reduce energy consumption, provide uniform and comfortable light, reduce glare and protect eyes.



4. SH-O11 high bay light adopts thickened waterproof shell with waterproof plug and waterproof rubber ring, waterproof grade IP65, service life exceeds 50000H.

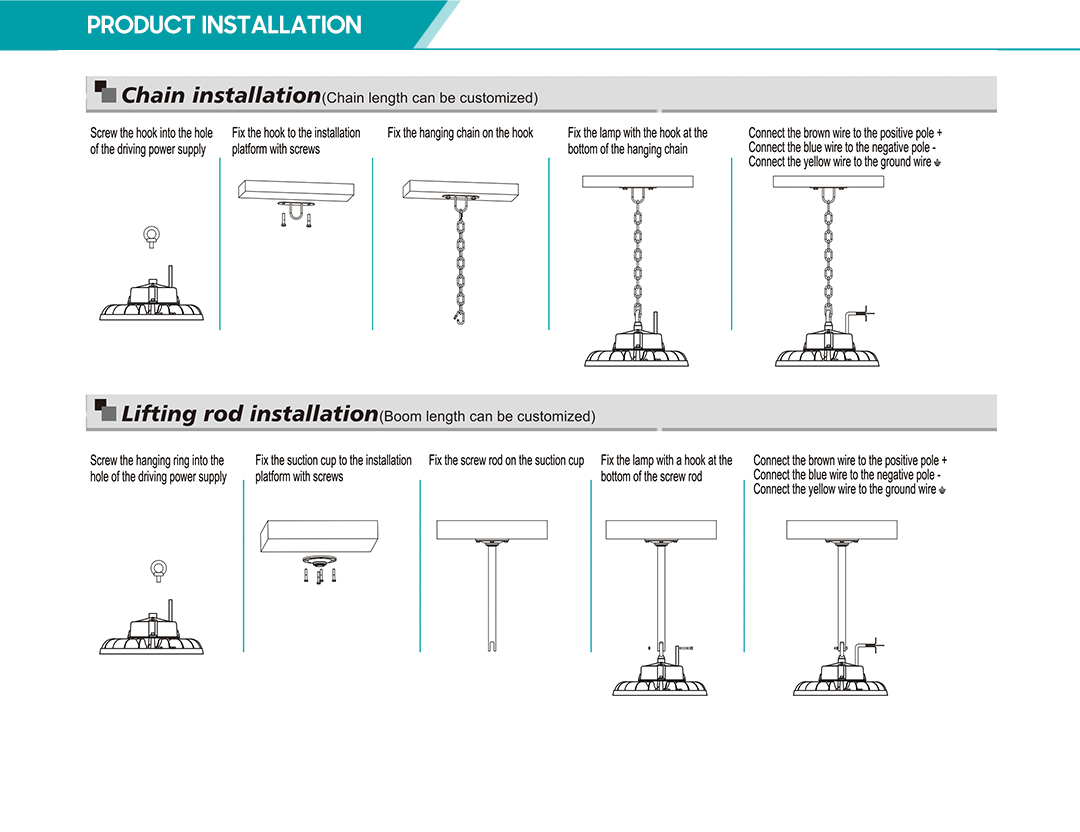

5. SH-O11 high bay light has complete specifications, and 100W/150W/200W models are available. It can be installed by hanging rod and hanging ring to meet the installation needs of various scenes.

Application scenario

Widely used in high-bay industries, workshops, warehouses, logistics center showrooms, highway toll stations, gas stations, supermarkets, gymnasiums, shipyards, farmers' markets and other areas that require lighting.
