SH-O10 LED high-efficiency High Bay Light

Short Description:

Product Description:

Product No.: SH-O10 High Bay Light

Light Body Material: Die-cast Aluminum Shell

Warranty Period: 5 Years

IP Rating: IP65

Light efficiency: 150-160lm/w

Color Temperature: 3000K / 4000K / 6000K

Beam Angle: 60° 90° 120°

Shell Color: Black


Product Detail

Product Tags

Product Specifications

Model

Dimension(mm)

Power

 Nominal  Voltage

Lumen Output (±5%)

IP  Protection

IK Protection

SH-O10-100

Ø240×112

100W

AC100-270V

16000LM

IP65

IK08

SH-O10-150

Ø280×119

150W

AC100-270V

24000LM

IP65

IK08

SH-O10-200

Ø320×122

200W

AC100-270V

32000LM

IP65

IK08

Product Features

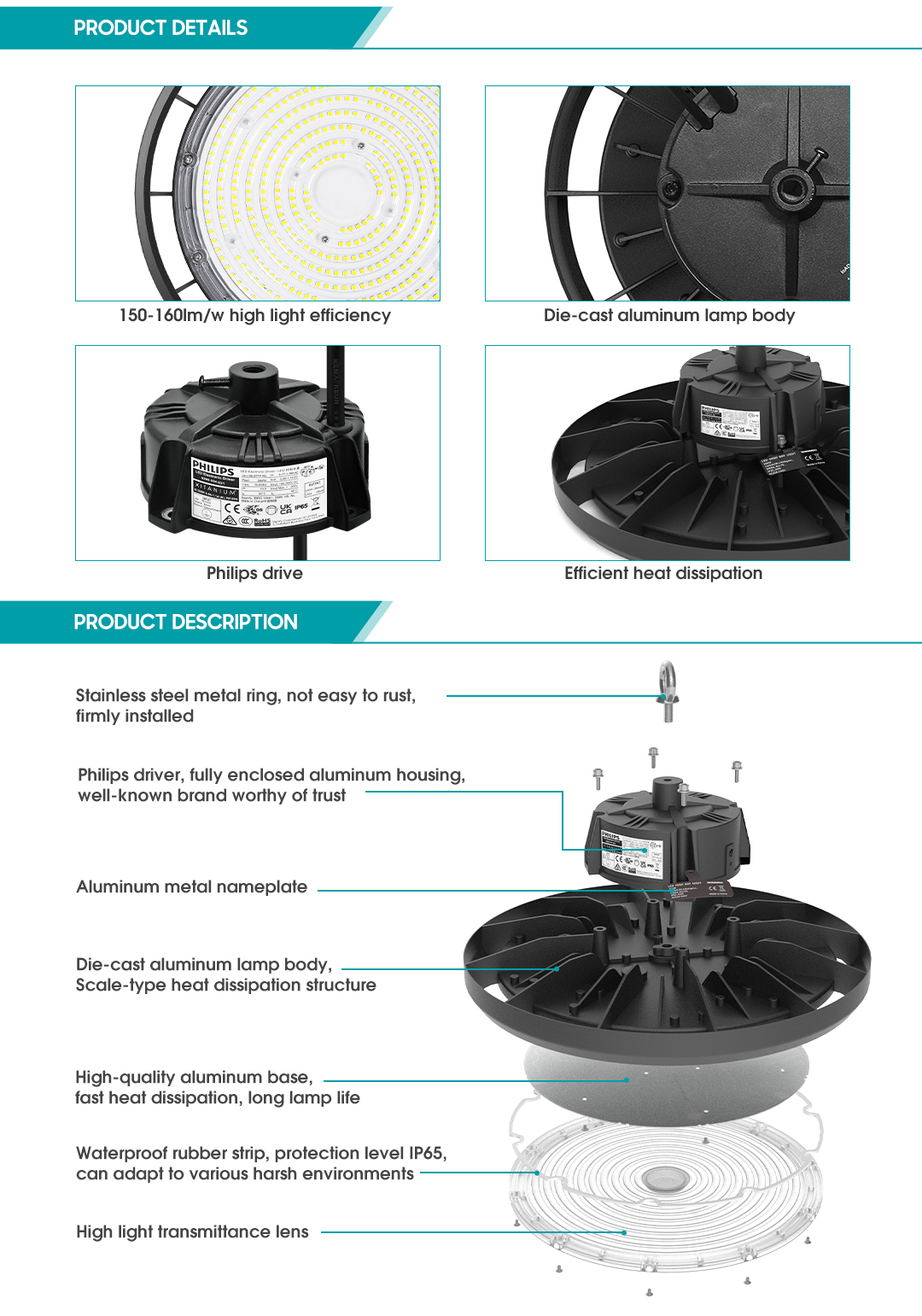

1.The SH-O10 high bay light has high-quality aluminum die-casting integrated molding technology. The scale-type heat sink design on the rear improves air circulation, rapid heat conduction, effective heat dissipation, and overall heat dissipation performance. Anti-corrosive and rust-proof, with a longer service life.

2.SH-O10 high bay light uses high lumen LEDs, with a lighting efficiency of 150-150LM/W and a service life of 50,000 hours. It also has an imported optical lens with a luminous efficiency of up to 95% and luminous angles of 60°, 90°, 120°, and other angles that can be adjusted to suit the lighting demands of various settings.



3. The SH-O10 high bay light uses a PHILIPS driver, which can deliver consistent output in a variety of situations, increase lighting efficiency, lower energy consumption, give uniform and comfortable light, decrease glare, and protect eyes.

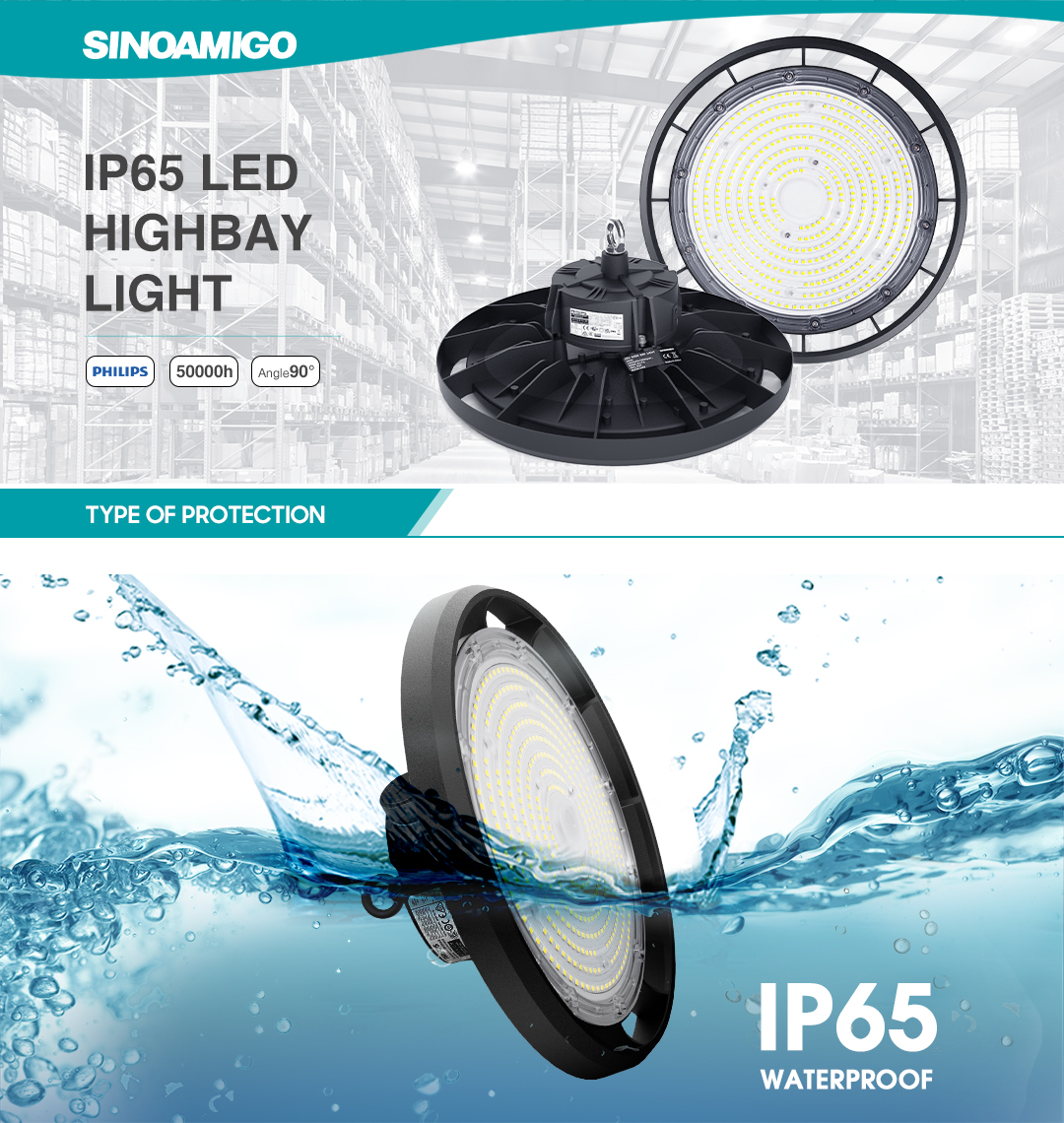

4. The SH-O10 high bay light has a reinforced waterproof shell, waterproof plug, and waterproof rubber ring, with an IP65 waterproof rating and a service life of over 50,000 hours.

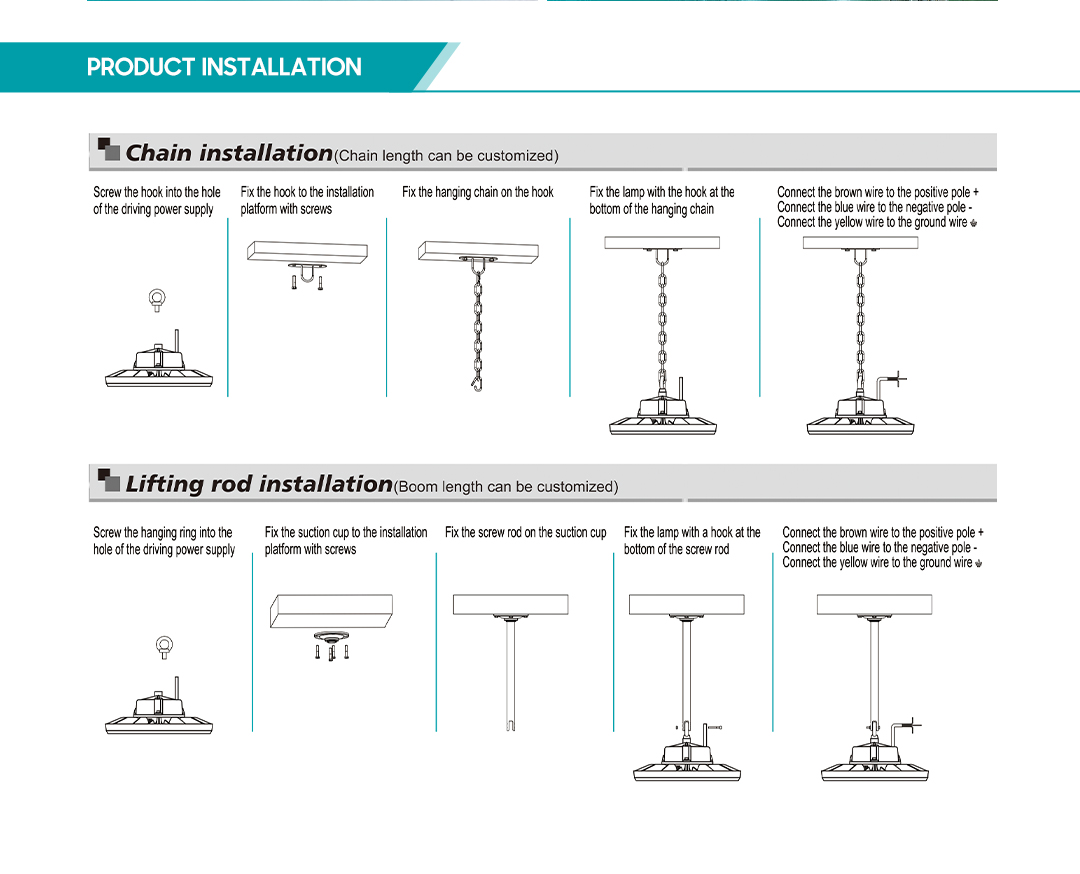

5. The SH-O10 high bay light is available in 100W, 150W, and 200W variants and may be placed using a hanging rod or a hanging ring to satisfy the installation needs of diverse scenarios.

Product Description

https://www.sinoamigolight.com/sh-o10-led-high-efficiency-high-bay-light-product/ https://www.sinoamigolight.com/sh-o10-led-high-efficiency-high-bay-light-product/ https://www.sinoamigolight.com/sh-o10-led-high-efficiency-high-bay-light-product/ https://www.sinoamigolight.com/sh-o10-led-high-efficiency-high-bay-light-product/

Application scenario

Widely used in high-bay industries, workshops, warehouses, logistics center showrooms, highway toll stations, gas stations, supermarkets, gymnasiums, shipyards, farmers' markets and other areas that require lighting.
