SF-M1 outdoor engineering lighting module flood light

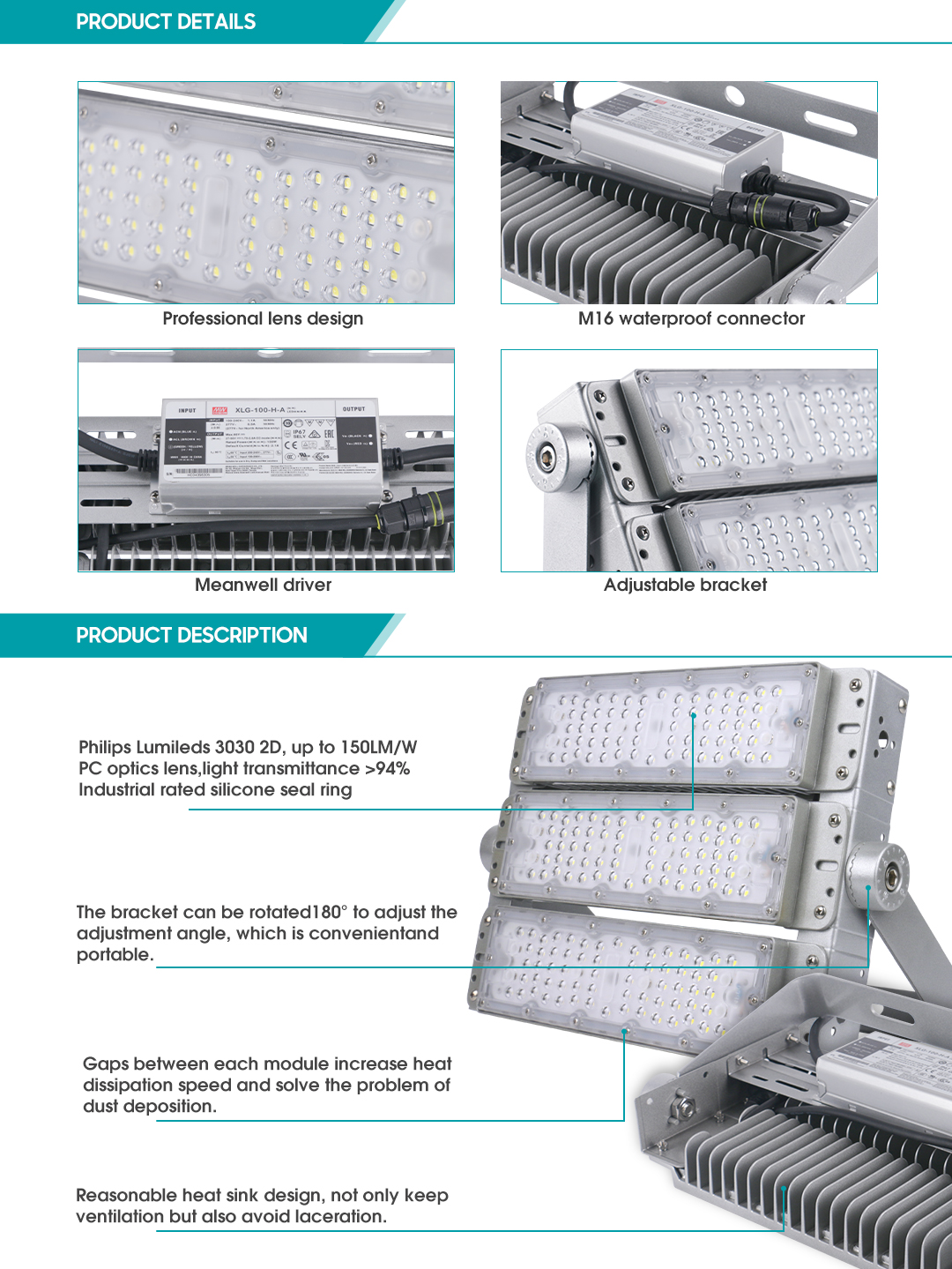

1. The SF-M1 modular floodlight is made of pure die-casting aluminum, which is firm and stable, anti-corrosion, anti-cracking, has strong thermal conductivity, and is suitable for various outdoor environments. The back adopts die-cast aluminum flake structure, which uses air convection design to dissipate heat efficiently and quickly, and improve the service life.

2. Highlight Philips Lumileds 3030 2D lamp beads, using high light transmittance lens + scientific light distribution mode, rectangular arrangement, industrial grade silicone sealing ring, luminous efficacy up to 150LM, high brightness, low light decay, and longer service life. PC optical lens, light transmittance >94%, wide luminous range.

3. The lighting angle can be rotated 180°. The side is designed with gear fixed bracket and movable joints to meet different angles of lighting.

4. Adopt high light transmission and high density acrylic lampshade. Compression and crack resistance, high hardness, good light transmittance, protection level IP10

5. Industrial-grade waterproof, three-layer protection, waterproof grade up to IP66, not afraid of various harsh outdoor conditions.

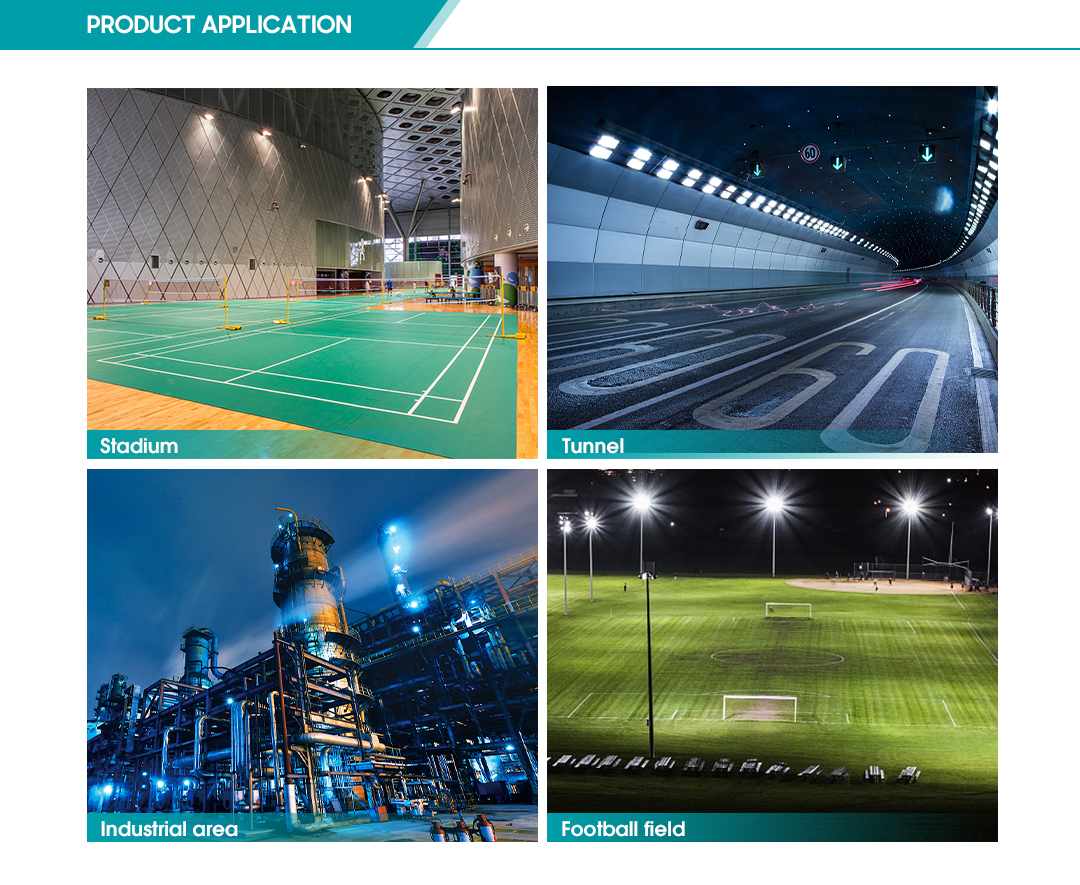

6. A variety of installation methods, wall-mounted installation, ceiling/ceiling installation/high pole installation

7. Built-in independent constant current driver, using MEAN WELL LED driver, with 6kV/10KV surge protection, dimming function and DALI dimming function are optional.
