Product Specifications
|
Model |
Dimension(mm) |
Power |
Nominal Voltage |
Lumen Output (±5%) |
IP Protection |
IK Protection |
|
SF-E310 |
104.5x89.5x30 |
10W |
110-240V |
1000LM |
IP65 |
IK10 |
|
SF-E320 |
118x98x30 |
20W |
110-240V |
2000LM |
IP65 |
IK10 |
|
SF-E330 |
160.2x125.5x30 |
30M |
110-240V |
3000LM |
IP65 |
IK10 |
|
SF-E350 |
203.8x151.5x35 |
50W |
110-240V |
5000LM |
IP65 |
IK10 |
|
SF-E375 |
236.5x183.5x35 |
75W |
110-240V |
7500LM |
IP65 |
IK10 |
|
SF-E3100 |
269x216x35 |
100W |
110-240V |
10000LM |
IP65 | IK10 |
|
SF-E3150 |
334x236.5x38 |
150W |
110-240V |
15000LM |
IP65 | IK10 |
|
SF-E3200 |
337.5x287x40 |
200W |
110-240V |
20000LM |
IP65 | IK10 |
|
SF-E3300 |
433x328x40 |
300W |
110-240V |
30000LM |
IP65 | IK10 |
|
SF-E3400 |
488x328x40 |
400W |
110-240V |
40000LM |
IP65 | IK10 |
|
SF-E3500 |
592x328x40 |
500W |
110-240V |
50000LM |
IP65 | IK10 |
|
SF-E3600 |
696x328x43 |
600W |
110-240V |
60000LM |
IP65 | IK10 |

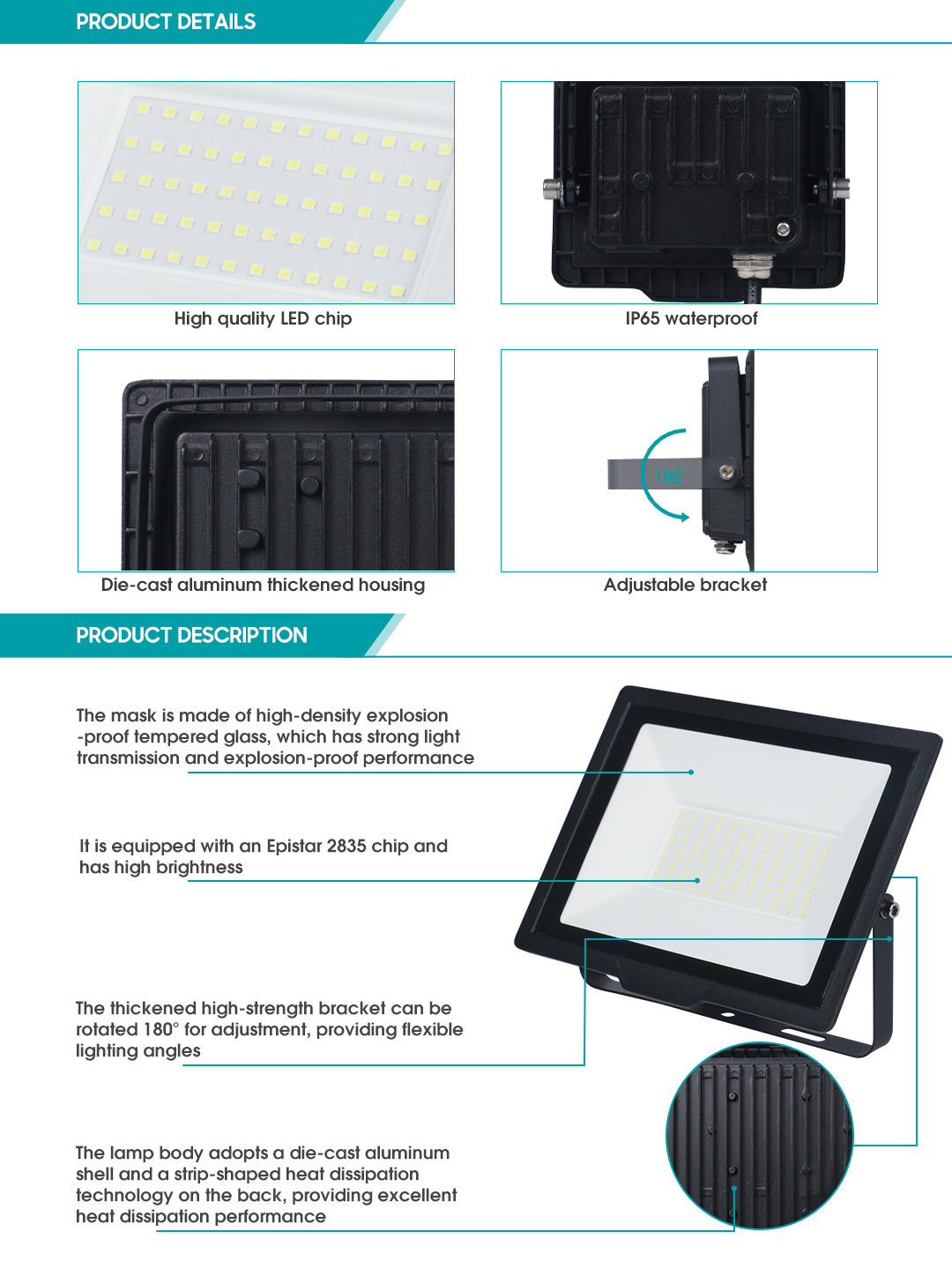

Product Features
1. SF-E3 linear floodlight, the lamp body adopts aviation die-casting aluminum shell, high hardness, no deformation, the back adopts stripe heat dissipation technology, which increases the contact area with the air, and the heat dissipation effect is more ideal, so that the heat of the lamp beads can be quickly exported , The product maintains a stable working condition and prolongs the service life of the lamp.
2. Various power options from 10w to 600w are available to meet the needs of different scenarios
3. Thickened high-strength bracket, rotary adjustment, flexible lighting angle, elastic screw adjustment bracket, 180°rotatable.
4. The face shield is made of high-density explosion-proof tempered glass, which is resistant to compression and cracking. The high-purity glossy reflector increases the brightness, and has strong light transmission and explosion resistance.
5. Waterproof and dustproof, no rust, the interior is glued and waterproof, the exterior is made of high-quality sealed silicone waterproof, the waterproof level is IP65, and it can be used normally in outdoor rainstorm environments.
6. A variety of installation methods, wall-mounted installation, ceiling/ceiling installation/high pole installation
7. High-brightness LED chip, built-in Epistar 2835 chip, high brightness, low light decay, long-term use, bright as new.
Application scenario
Wide range of application scenarios, engineering lighting, urban lighting, billboards, park squares, stadiums can be used
