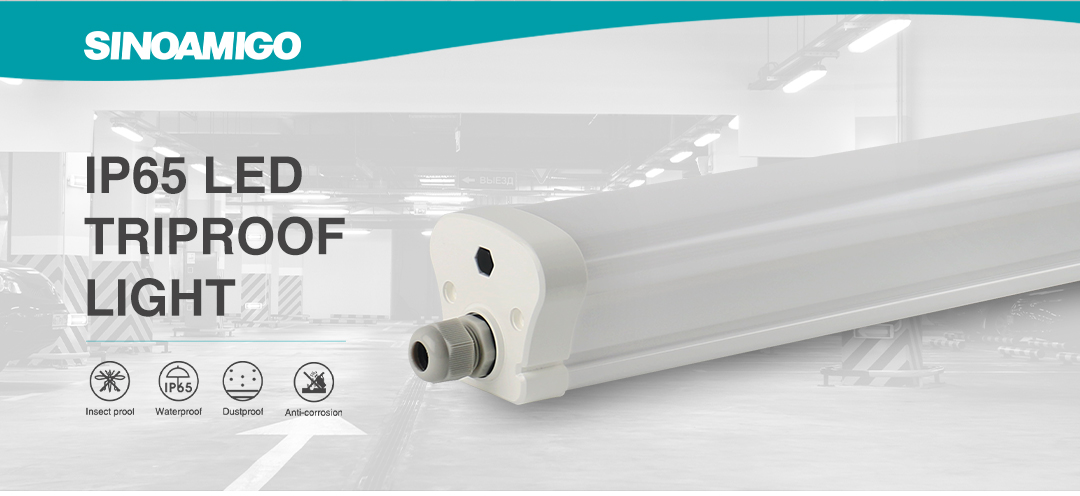

LED Triproof Light

SW-K-C2 IP65 LED waterproof luminaires

Short Description:

Product parameters:

Product model: SW-K-C2

Product material:  PC +aluminum material

LED: SMD 2835

Cable Gland: PG13.5

CRI: Ra80

Type of Protection: IP65

Warranty: 2 Years


Product Detail

Product Tags

Product parameters

Model

Voltage

Dimension(mm)

Power

LED Chip

Luminous flux

SW-K20-C2

100-240V

600x78x72.5

20W

2835

1600lm

SW-K40-C2

100-240V

1200x78x72.5

40W

2835

3200lm

SW-K60-C2

100-240V

1500x78x72.5

60W

2835

4800lm

Product Datasheet

SW-K-C2单页

Product Features

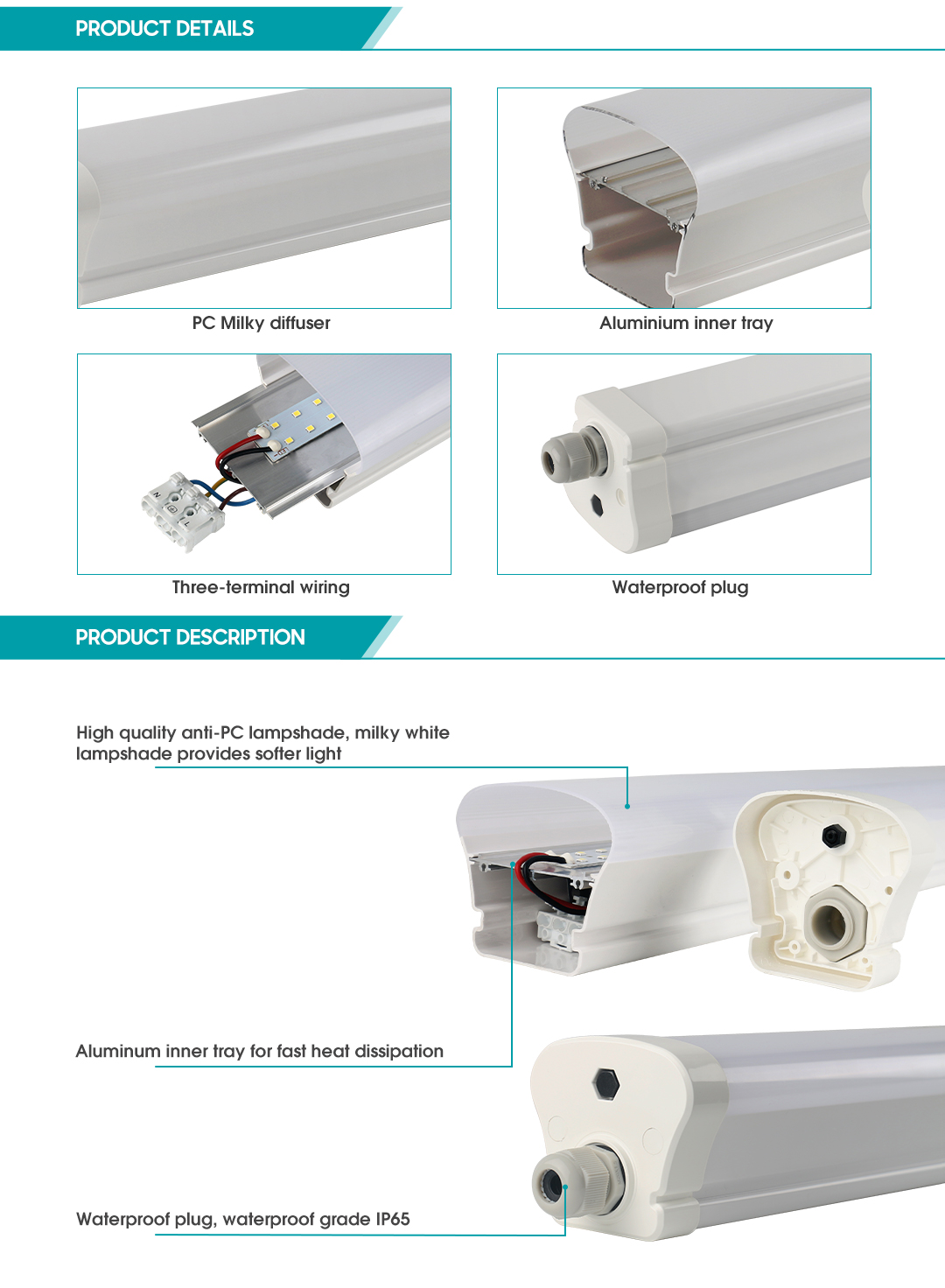

1. The body of the sw-k-c2 integrated tri-proof lamp is made of PC material with a protection level of IK08. It has excellent impact resistance and weather resistance, which can effectively prevent the breakage and aging of the lamp body and enhance the service life of the product. Milky white lampshade, soft and even light without glare.

2. The sw-k-c2 tri-proof lamp body has a built-in aluminum tray, which can provide good heat dissipation effect, reduce the temperature of the lamp, extend the service life of the lamp, and avoid functional degradation or failure of the lamp due to high temperature.

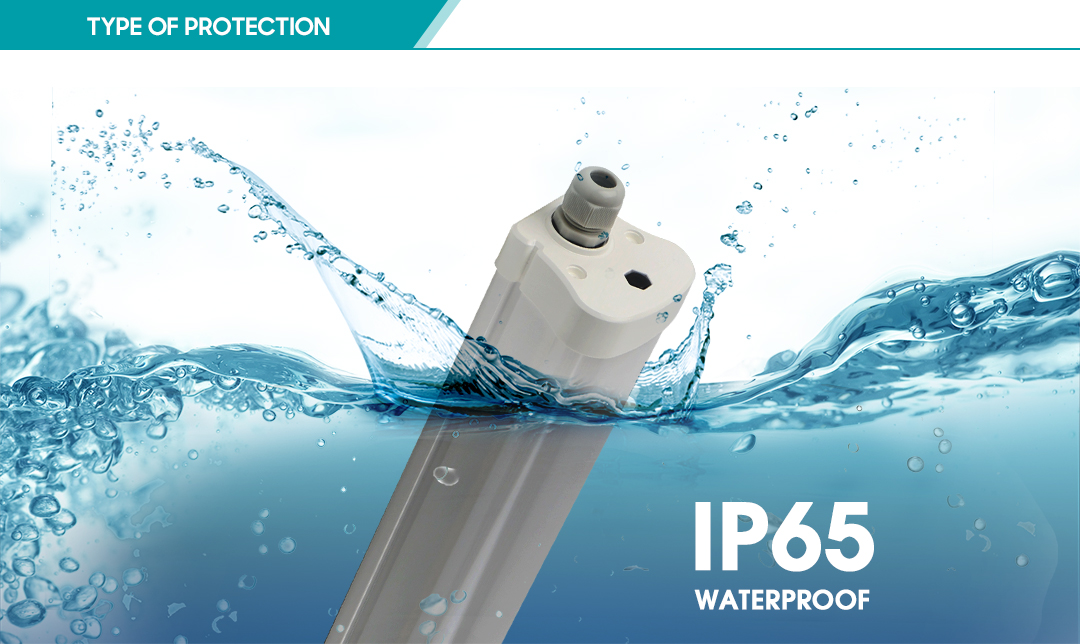

3. sw-k-c2 tri-proof lights are waterproof, dustproof and anti-corrosion. The protection grade is IP65 and can be used in harsh outdoor environments, such as rain, snow, sandstorms, etc. It has a wide range of applications and can be used both indoors and outdoors.

4. The sw-k-c2 tri-proof lamp adopts an integrated design, which is compact in structure and easy to install. It reduces the connection points of cables and improves the stability and reliability of the lamp. 5. sw-k-c2 tri-proof light uses smd2835 LED light source, which has the characteristics of high efficiency and low energy consumption. It is more energy-saving and environmentally friendly than traditional lighting fixtures.

Product scope of application

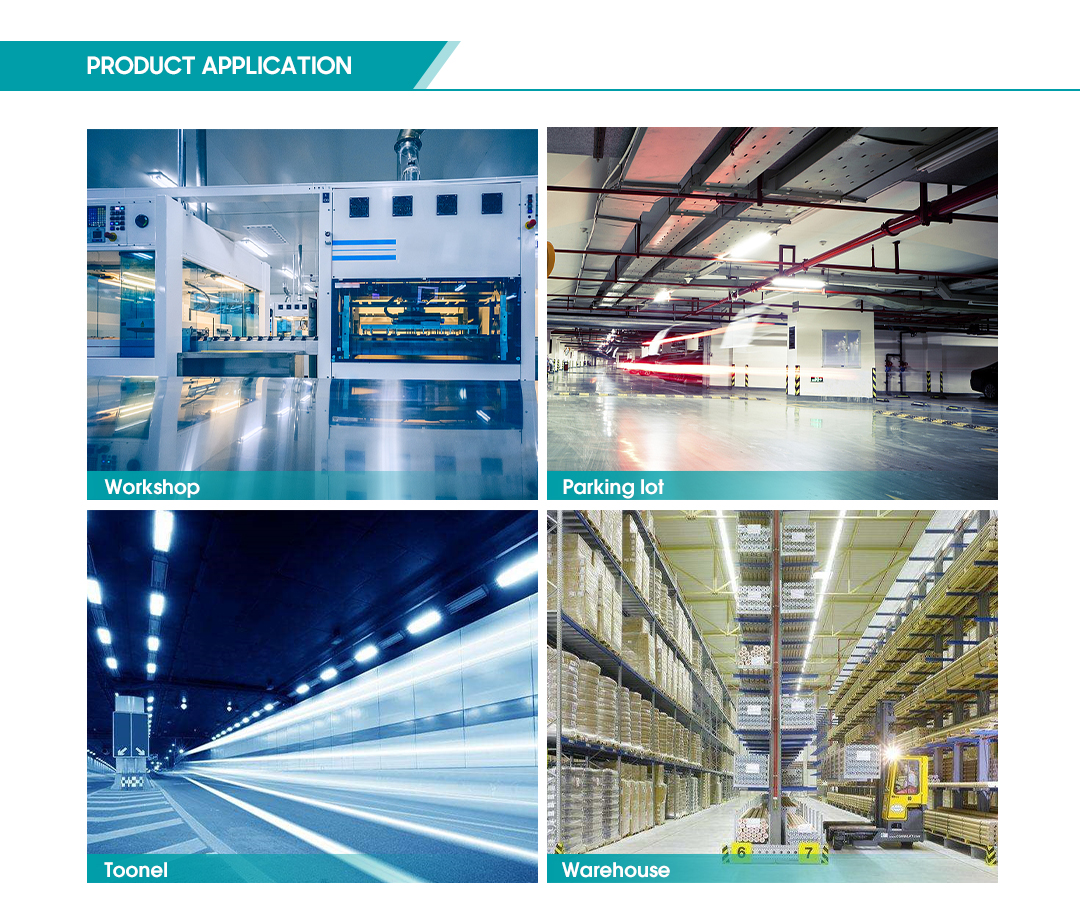

SW-K-C2 tri-proof lights have a wide range of applications and are often used for lighting in parking lots, underground garages, factories, shopping malls, workshops, warehouses, offices and other scenes.

Product Description

SW-K-C2_01 SW-K-C2_02 SW-K-C2_03 SW-K-C2_04 SW-K-C2_06
