LED Linear Light

SC10 Grille Anti-Glare Linear Lamp

Short Description:

Product model: SC10 linear light
Product material: aluminum + PC
Chips: Sanan SMD 2835
color: white/black
CCT: 3000-6500K
Angle: 120°
PF: 0.9
UGR<19
CRI: >80


Product Detail

Product Tags

Product parameters

Model

Voltage

Dimension(mm)

Power

Luminous Output(±5%)

LED chip

SC10-3580-40

AC 220-240V

1200x35x80

36-40W

80lm/w

Sanan SMD 2835

Product Features

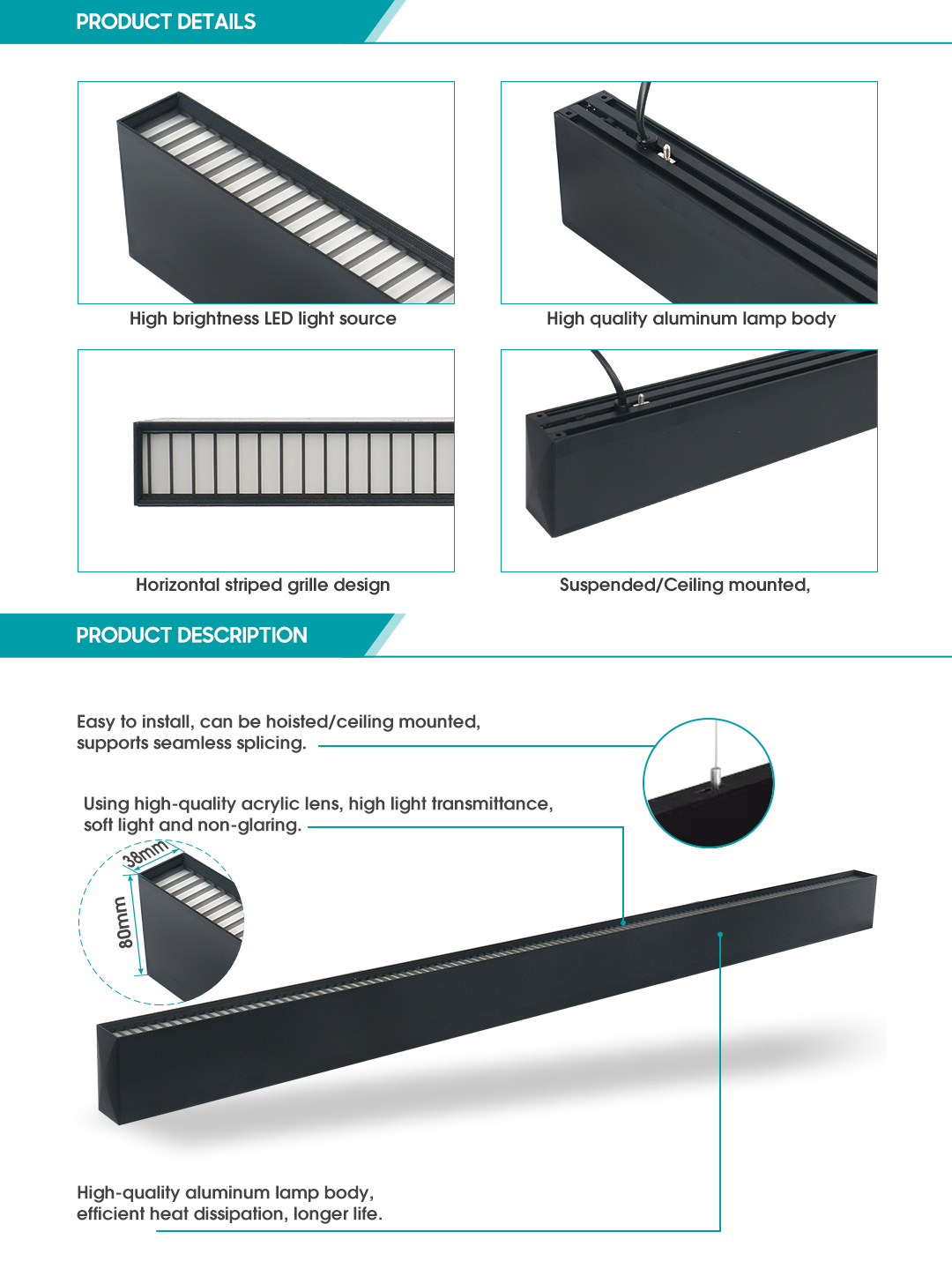

1. The frame of the SC10 linear lamp is made through multiple processes such as die-casting, grinding and polishing, and then undergoes high-temperature painting to strive for perfection. The lampshade is made of high-quality acrylic, featuring strong light transmission, exquisite craftsmanship, durability and highlighting the modern, simple and fashionable art.

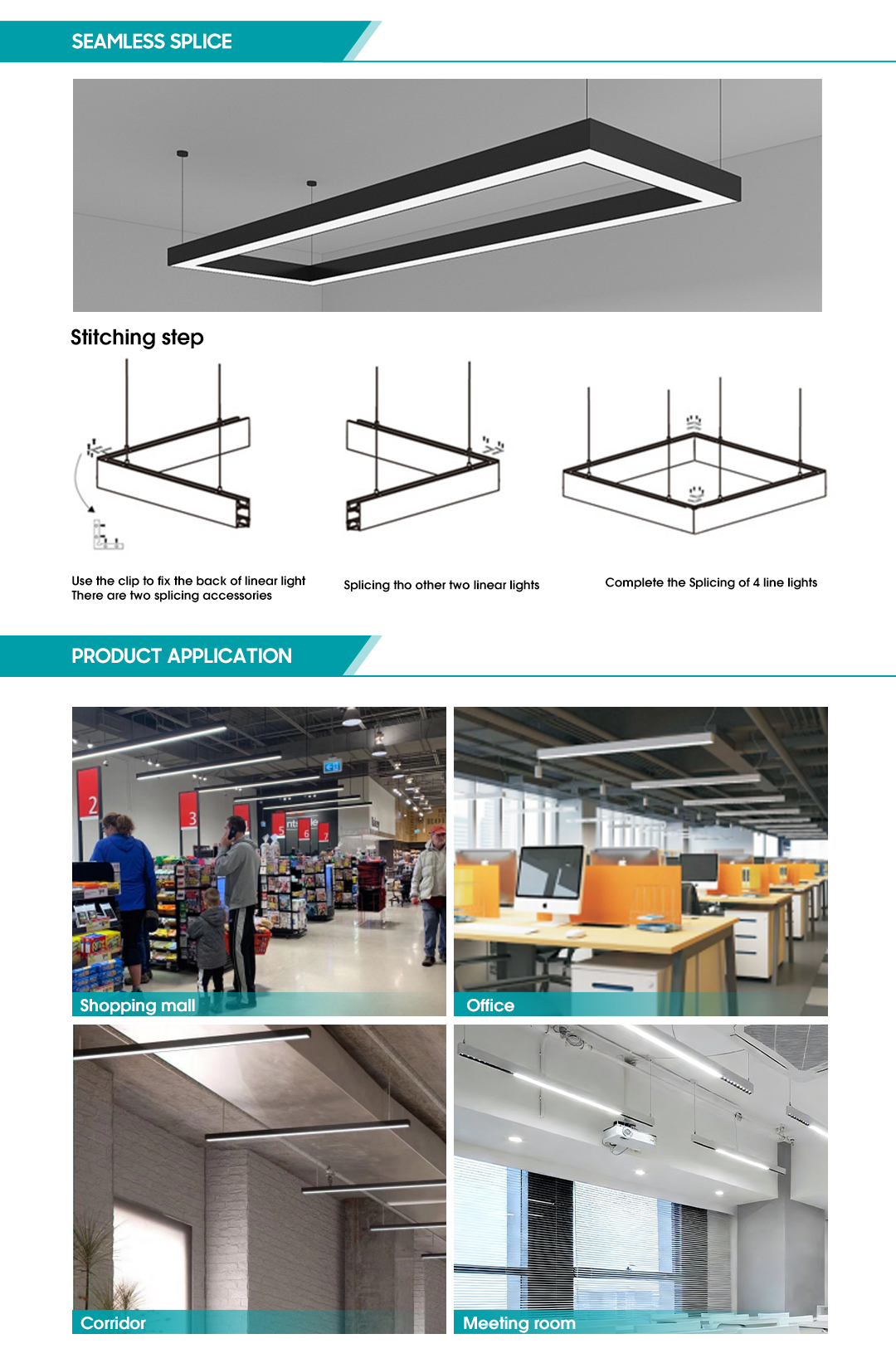

2. The SC10 linear light adopts a minimalist design, is fashionable and versatile, and is available in black and white. Different lamps can be seamlessly joined together. With various joining methods, they can be combined into rectangles, squares, extra-long shapes, polygons, etc. It has a wide range of applications.

3. The installation method is simple and can be carried out by hoisting, ceiling installation or square frame installation. It can be used in large offices and commercial Spaces. The height of the hoisting line is adjustable, and the height of the lamps can be adjusted according to the on-site requirements.

4. The sc10 linear light adopts a grille design with a UGR of less than 19. It uses high-quality acrylic lenses, which have a high light transmittance, soft light and are not dazzling. The color rendering index is over 80, reproducing true colors and featuring high luminous efficiency.

Suitable scene

SC10 linear lights are simple and versatile, suitable for non-style decoration, in shopping malls, supermarkets, office buildings, conference rooms, offices, gyms, leisure areas, etc.

Product Datasheet

SC10 Linear LampSC10 Linear Lamp
