Product parameters
|
Model |
Voltage |
Dimension(mm) |
Power |
Luminous Output±5%) |
LED chip |
|
SC08-2270-40 |
AC 220-240V |
1170x33x70 |
40W |
3600LM |
SMD 2835 |
Product Features

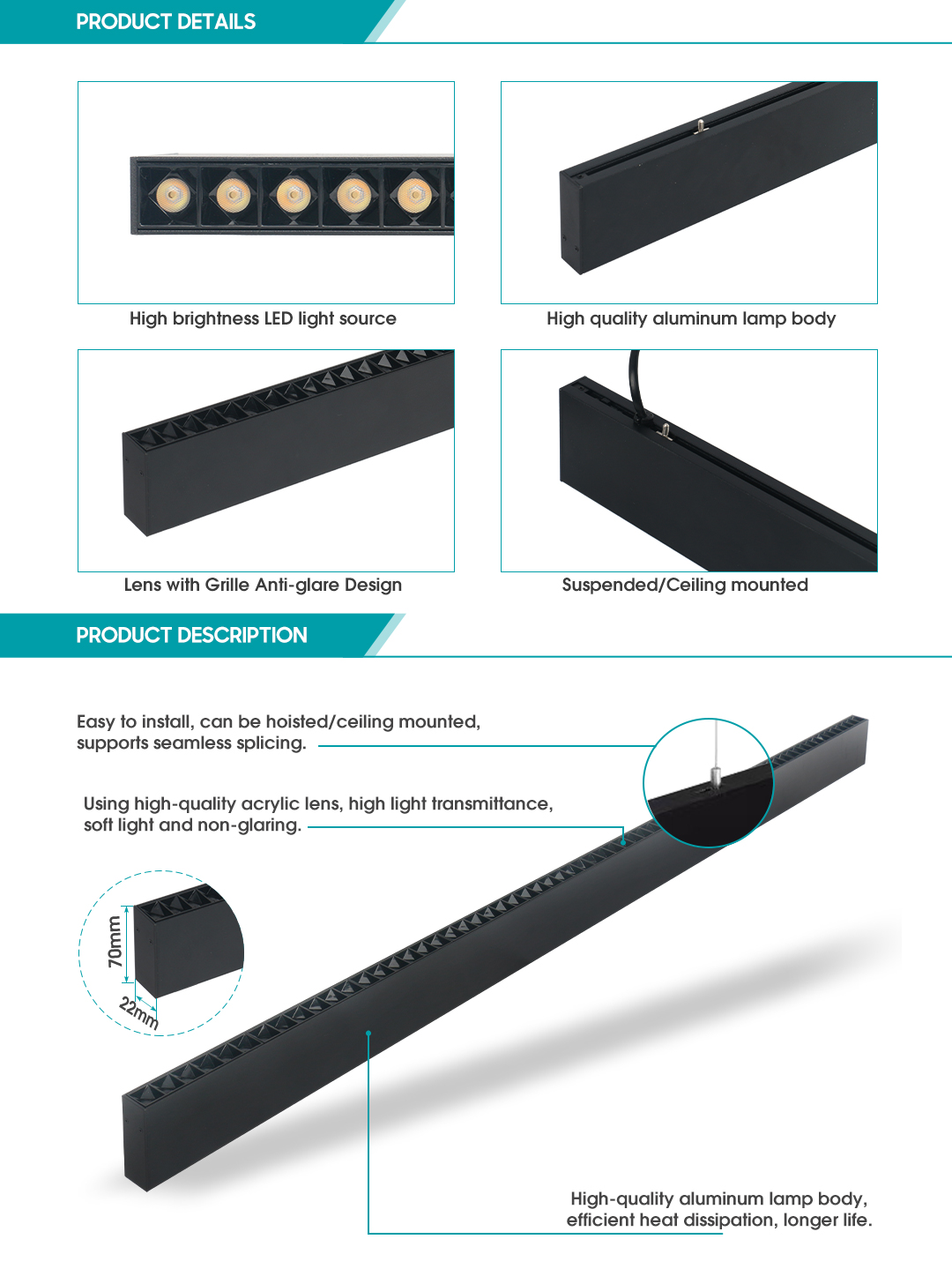

The SC08 linear light features a grille anti-glare design with 30° precision light control. It effectively filters stray light, precisely controlling the light at a 30° beam angle for concentrated, non-diffuse illumination, delivering outstanding accent lighting effects. The grille structure deeply recesses the light source, achieving a comfortable visual experience of "seeing the light, not the fixture" while significantly reducing glare.
The SC08 linear light boasts an ultra-narrow 22mm body for a minimalist appearance, while its 70mm height ensures sufficient optical depth, enhancing the grille's anti-glare performance.
Crafted from high-quality aviation-grade aluminum, the SC08 linear light offers excellent thermal conductivity. The 70mm height provides ample space for heat dissipation, ensuring long-term stable operation and a service life of up to 50,000 hours, thereby reducing maintenance costs.
With its deeply recessed light source, the SC08 remains comfortable and non-dazzling even with prolonged direct viewing, protecting eyesight. It is particularly suitable for environments with high lighting requirements, such as exhibition halls, high-end retail stores, and offices.

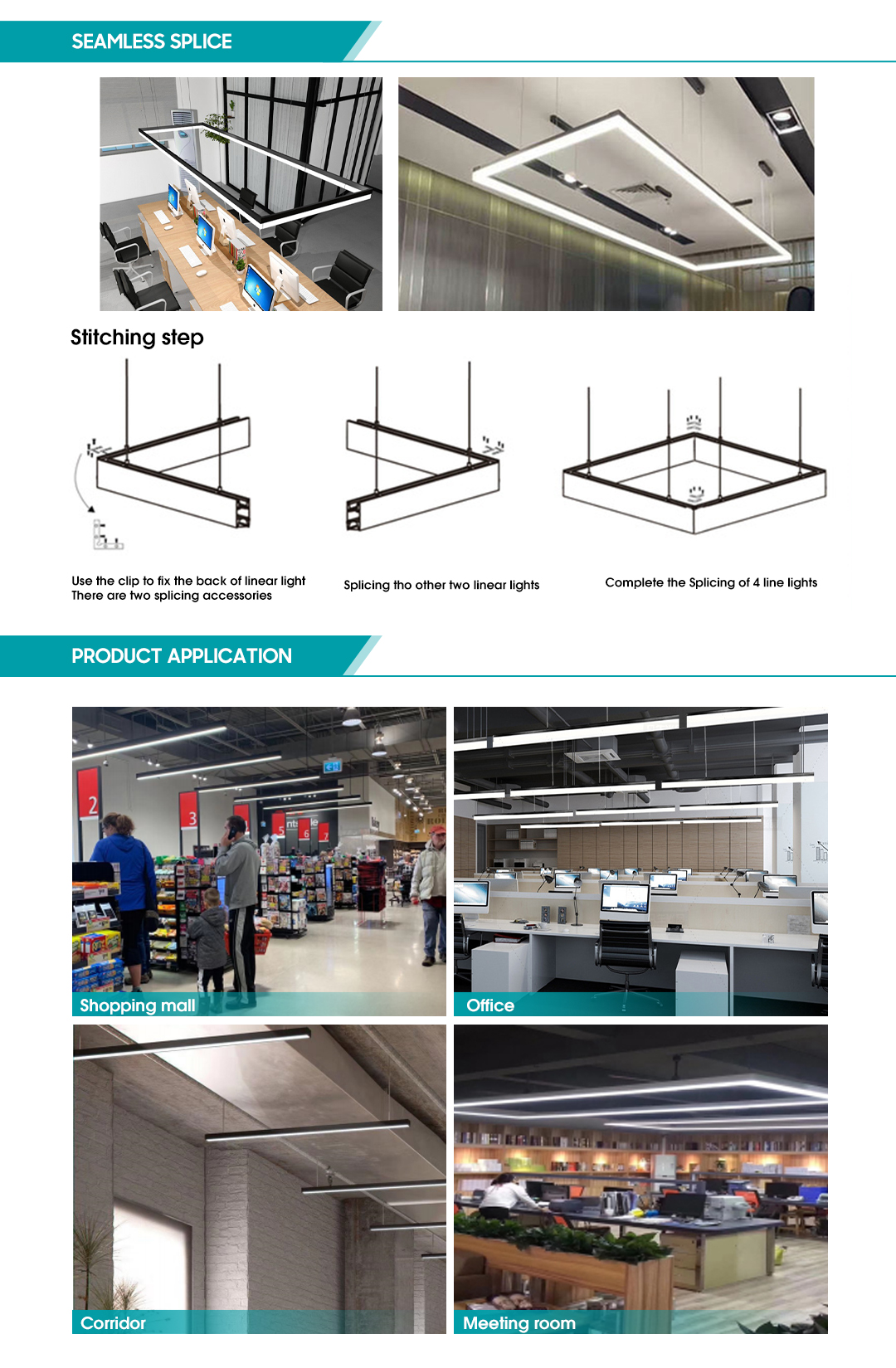

The SC08 supports flexible installation methods including surface mounting and suspended installation, with seamless splicing capability for multiple lights to enhance spatial unity. Individual control allows for diverse lighting combinations.
Suitable scene
High-End Retail: Precisely illuminates merchandise, enhancing display quality.
Art Galleries/Museums: Wall washing for paintings, restoring true colors of artworks.
Office Spaces: Provides a comfortable, glare-free working environment.
Hotels/Clubs: Creates an elegant ambiance, elevating spatial aesthetics
