LED Linear Light

SC06 double Grille Anti-Glare Linear Lamp

Short Description:

Product model: SC06 linear light
Product material: aluminum + PC
Chips: Sanan SMD 2835
color: white/black
CCT: 3000-6500K or 3000-5000k
Angle: 120°+30°
PF: 0.9
CRI: >80


Product Detail

Product Tags

Product parameters

Model

Voltage

Dimension(mm)

Power

Luminous Output(±5%)

LED chip

SC06-3370-36

AC 220-240V

1200x33x70

36W

3960LM

SMD 2835

Product Features

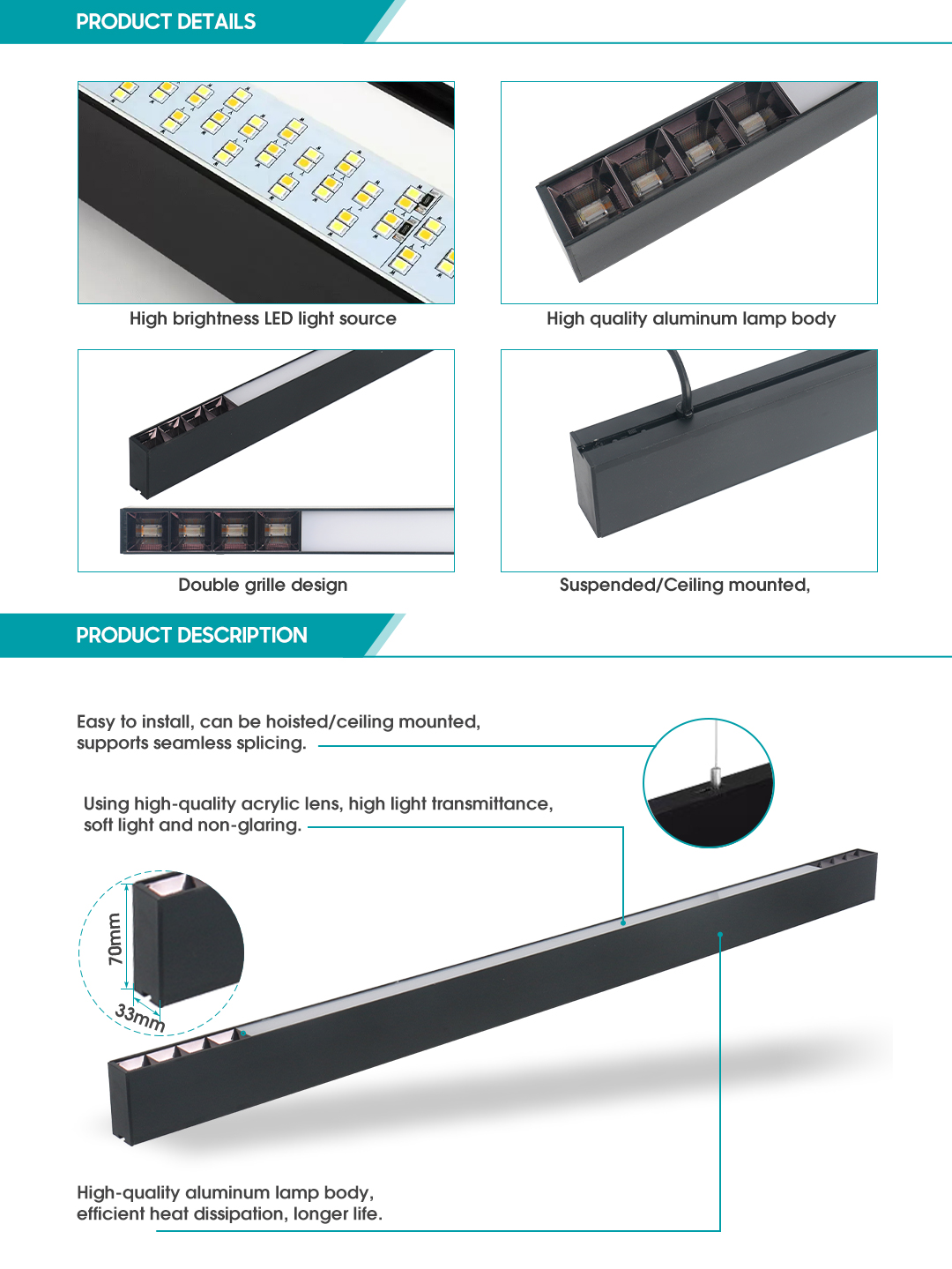

SC06 LED linear luminaire features a unique dual grille design at both ends, with a PC diffuser in the center. This innovative structure ensures uniform light distribution and effective glare control, making it ideal for a wide range of commercial and architectural lighting applications.

Beam Angle: 120° + 30° beam angle, delivering versatile lighting effects that combine wide coverage with targeted illumination—suitable for various environments.

High-Quality LEDs: Equipped with Sanan SMD 2835 chips, offering exceptional luminous efficacy of over 110 lumens per watt for energy-efficient brightness.

Power Options: Available in 36W and 40W to accommodate different project requirements with flexibility.

The luminaire body is constructed with a durable aluminum frame, ensuring excellent heat dissipation and long service life. It comes with a 5-year warranty for guaranteed peace of mind and quality assurance.

Suitable scene

SC06 linear lights are simple and versatile, suitable for non-style decoration, in shopping malls, supermarkets, office buildings, conference rooms, offices, gyms, leisure areas, etc.

Product Datasheet





SC06 Linear Lamphttps://www.sinoamigolight.com/sc05-led-simpl…d-linear-light-product/
