Product parameters
|
Model |
Voltage |
Dimension(mm) |
Power |
Luminous Output±5%) |
LED chip |
|
SC05-3370-18 |
AC 170-265V |
570x33x70 |
18W |
1800LM |
SMD 2835 |
|
SC05-3370-36 |
AC 170-265V |
1170x33x70 |
36W |
3600LM |
SMD 2835 |
Product Features

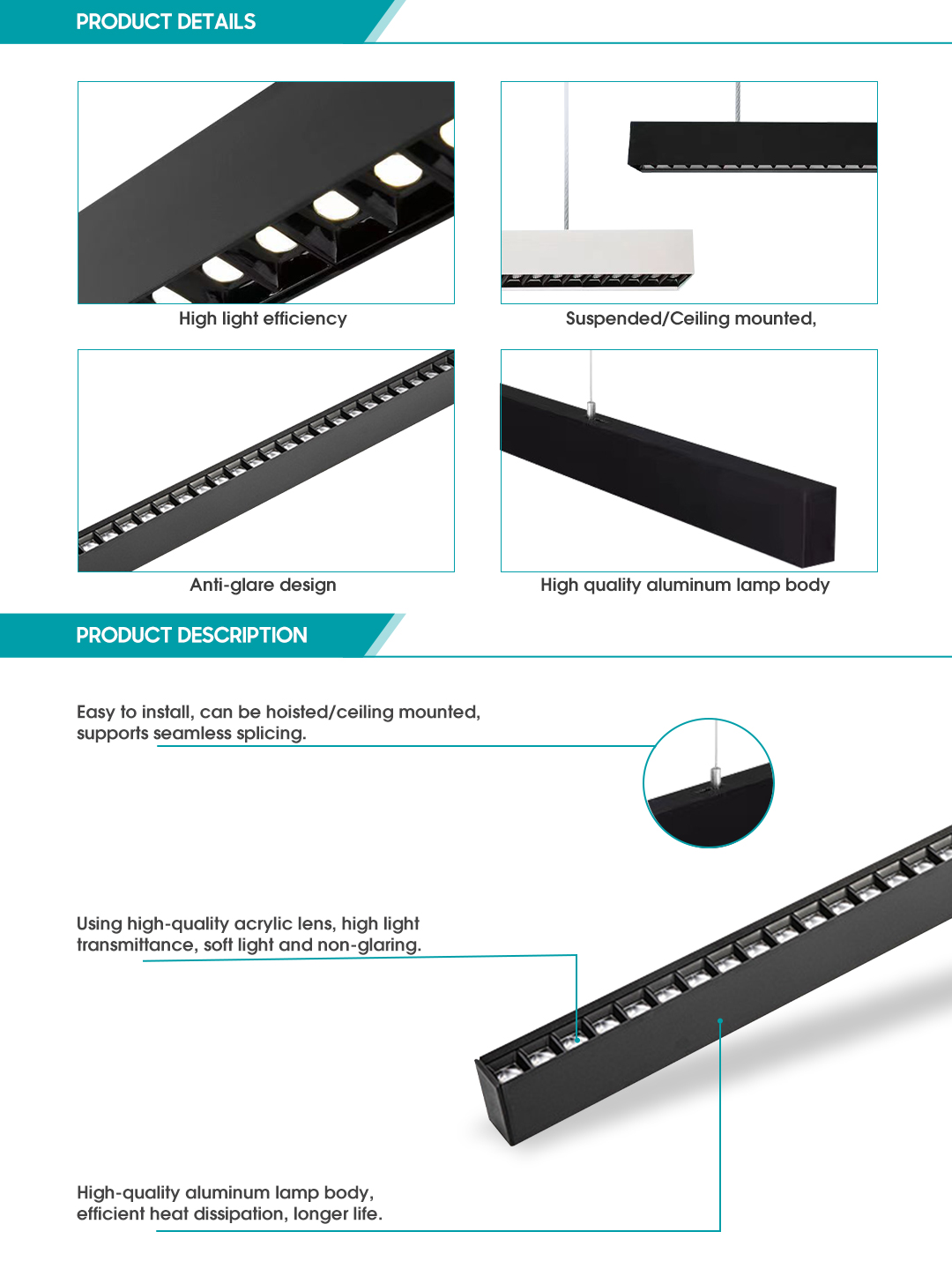

1. The frame of the SC05 linear lamp is made through multiple processes such as die-casting, grinding and polishing, and then undergoes high-temperature painting to strive for perfection. The lampshade is made of high-quality acrylic, featuring strong light transmission, exquisite craftsmanship, durability and highlighting the modern, simple and fashionable art.

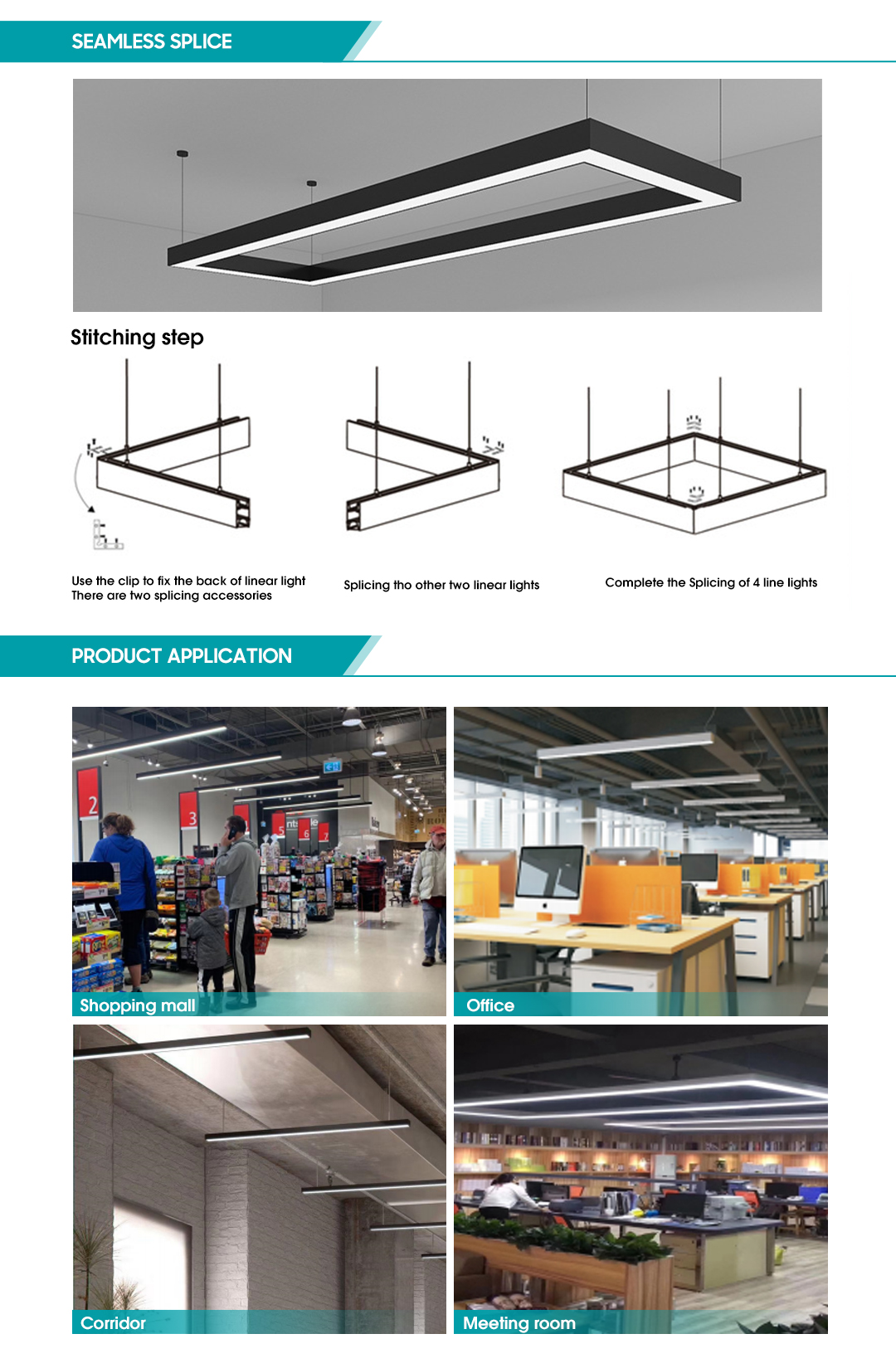

2. The SC05 linear light adopts a minimalist design, is fashionable and versatile, and is available in black and white. Different lamps can be seamlessly joined together. With various joining methods, they can be combined into rectangles, squares, extra-long shapes, polygons, etc. It has a wide range of applications.

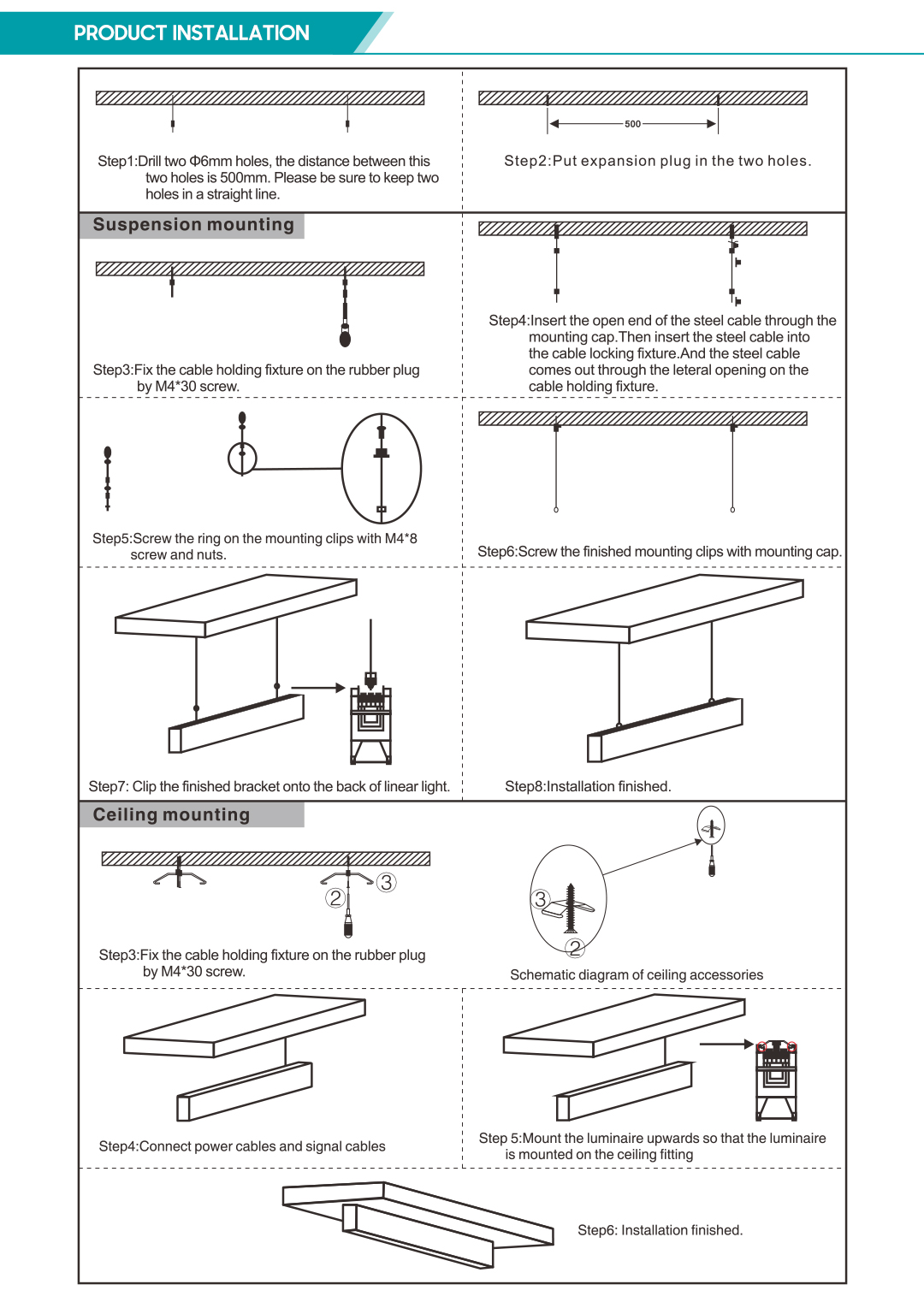

3. The installation method is simple and can be carried out by hoisting, ceiling installation or square frame installation. It can be used in large offices and commercial Spaces. The height of the hoisting line is adjustable, and the height of the lamps can be adjusted according to the on-site requirements.
4. The sc05 linear light adopts a grille design with a UGR of less than 17. It uses high-quality acrylic lenses, which have a high light transmittance, soft light and are not dazzling. The color rendering index is over 80, reproducing true colors and featuring high luminous efficiency.
