Product parameters
| Model | Voltage | Dimension(mm) | Power | PF | UGR | LED Chip | Luminous flux |
| SP-B-H2-6060 | 220-240V | 595x595x100 | 40W | >0.9 | <19 | SMD 2835 | 4000lm |
| SP-B-H2-30120 | 220-240V | 295x1195x100 | 40W | >0.9 | <19 | SMD 2835 | 4000lm |
| SP-B-H2-60120 | 220-240V | 595x1195x100 | 50W | >0.9 | <19 | SMD 2835 | 5000lm |

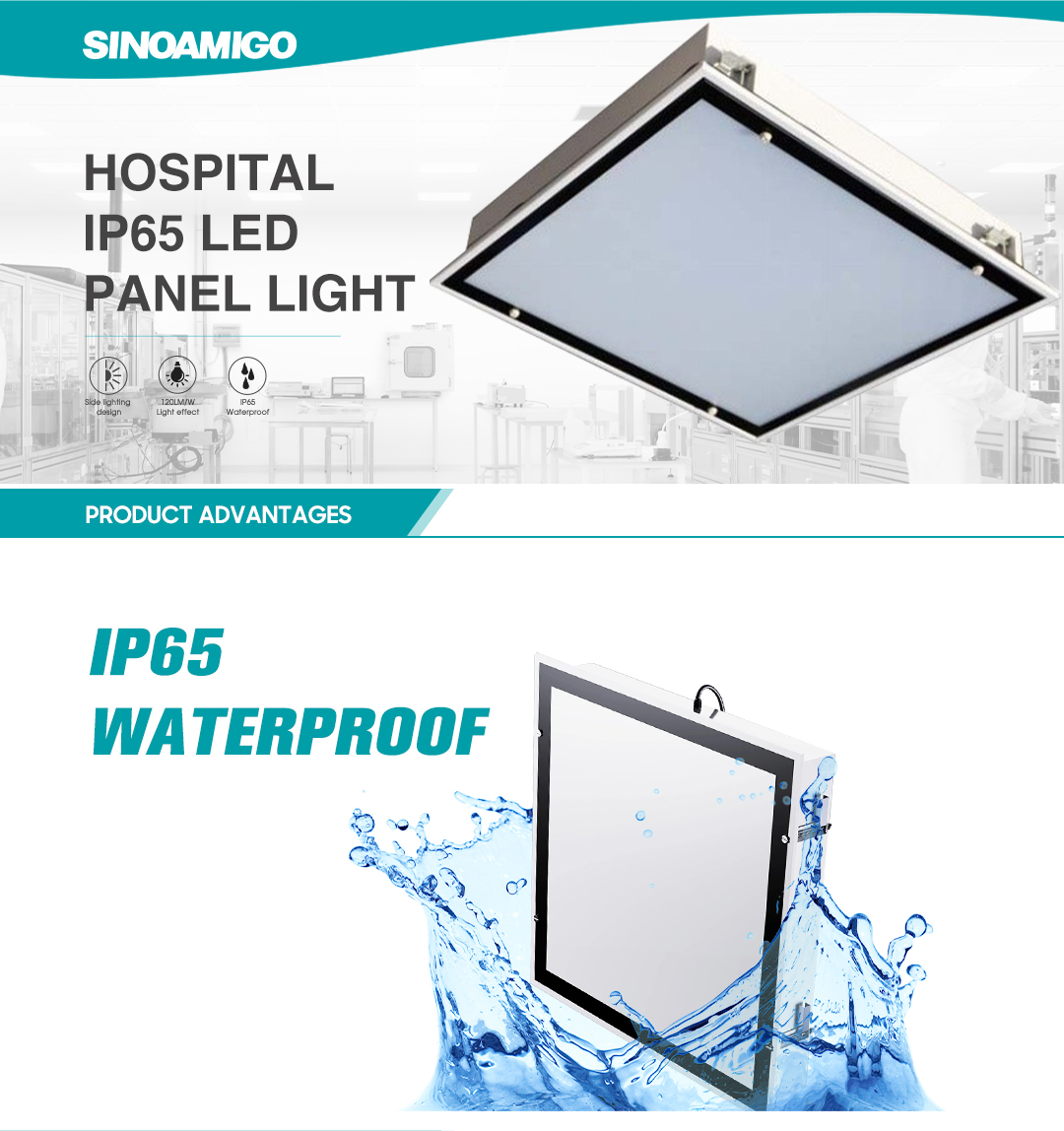

product features

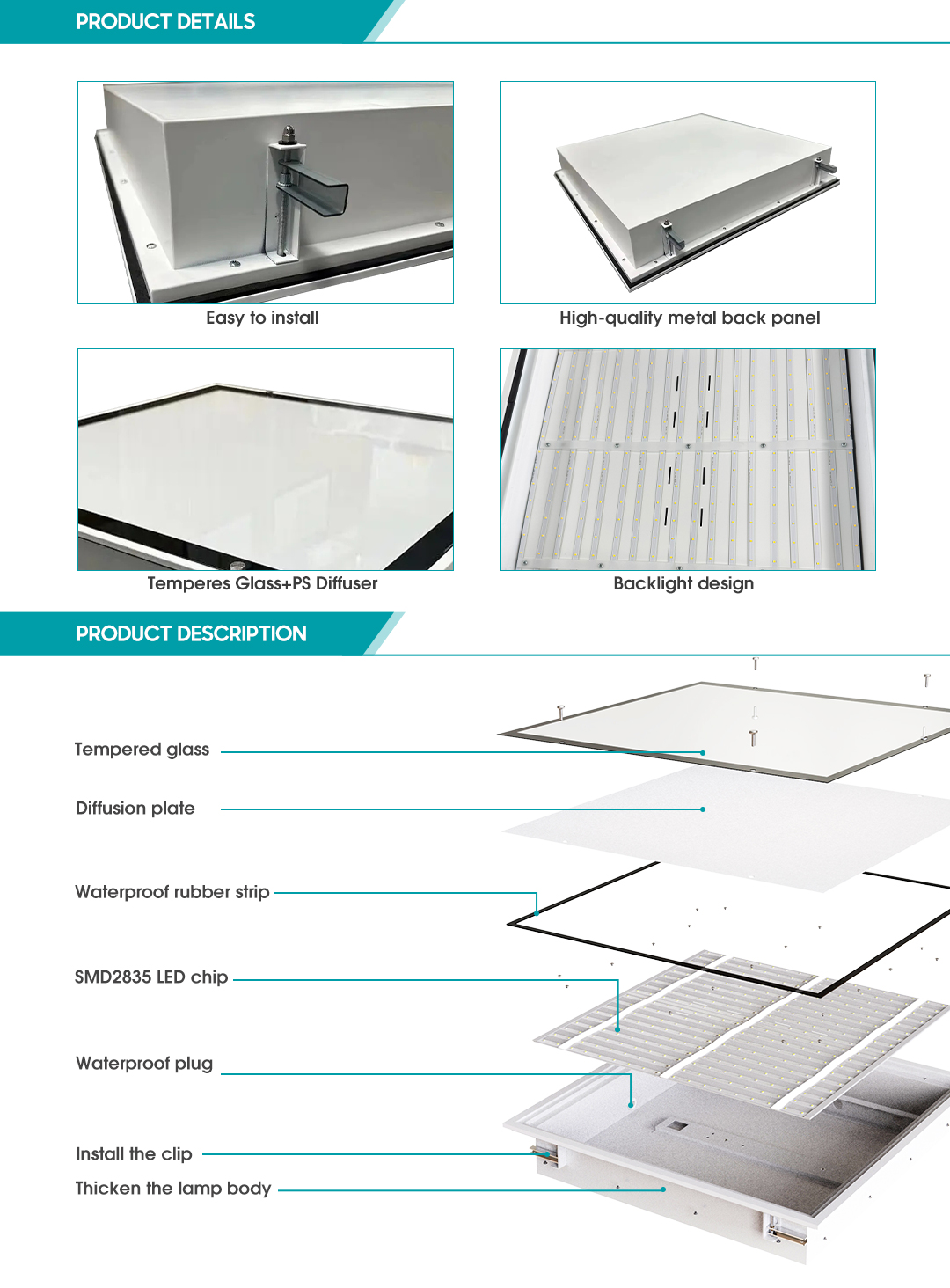

- The PS diffuser plate of the SP-B-H2 panel lamp is covered with tempered glass on the surface. It is sturdy and durable, emits uniform and soft light, and will not turn yellow or change color even after long-term use.
- The SP-B-H2 panel light adopts a backlight design to provide a better brightness effect, with a luminous efficacy of 100lm/ W. Combined with lens lamp beads, it has a higher brightness, UGR<19, anti-glare, and better protects eye health.
- The SP-B-H2 panel lamp adopts a steel base. The lamp body has a fully sealed structure, which is waterproof, dustproof and insect-proof. The protection level is IP65, which can effectively prevent dust and mosquitoes from entering the lamp body and affecting the lighting effect.
- The SP-B-H2 panel light is a cost-effective way to provide architectural elements and is highly suitable for offices, schools, hospitals, and any indoor locations that require uniform lighting and low maintenance.

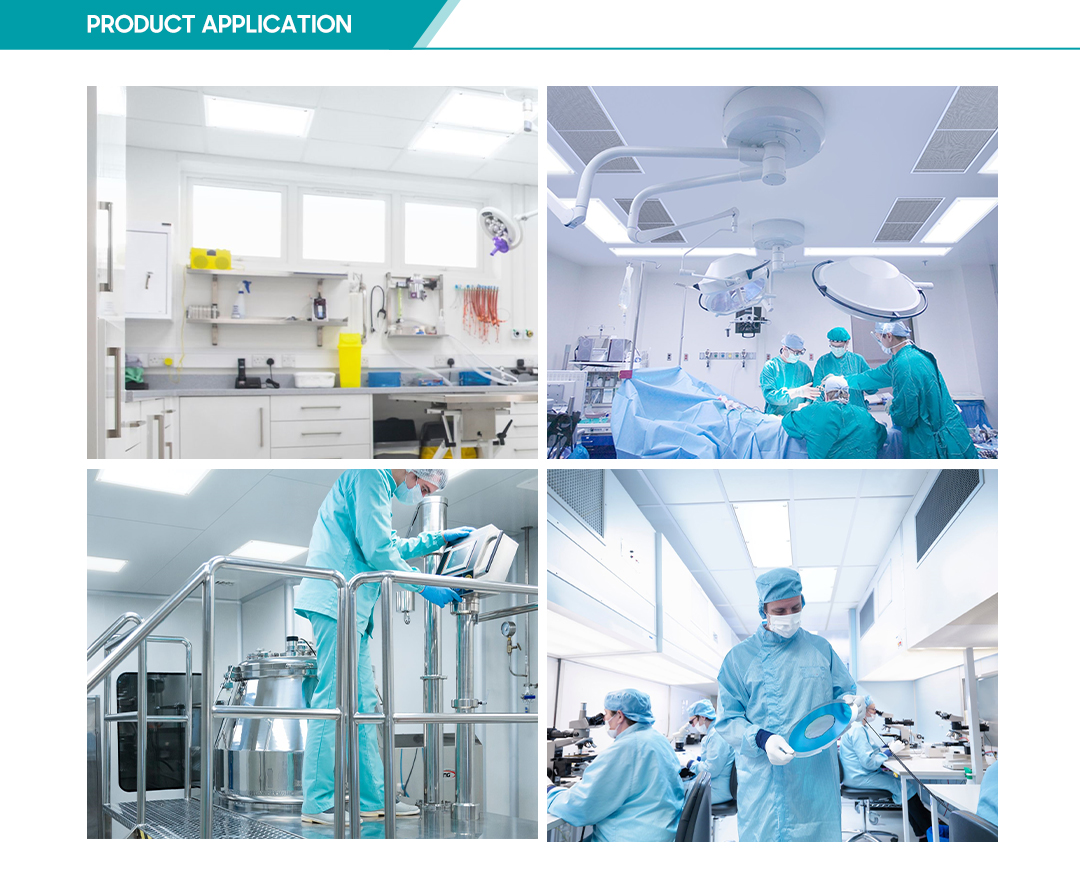

Product Use environment
This SP-B-H2 panel light is widely used in offices, conference rooms, workshops, hospitals and other places.
